Switch ON/OFF Icons in 3D View

Watch the short tutorial video here: Show/Hide Icons.

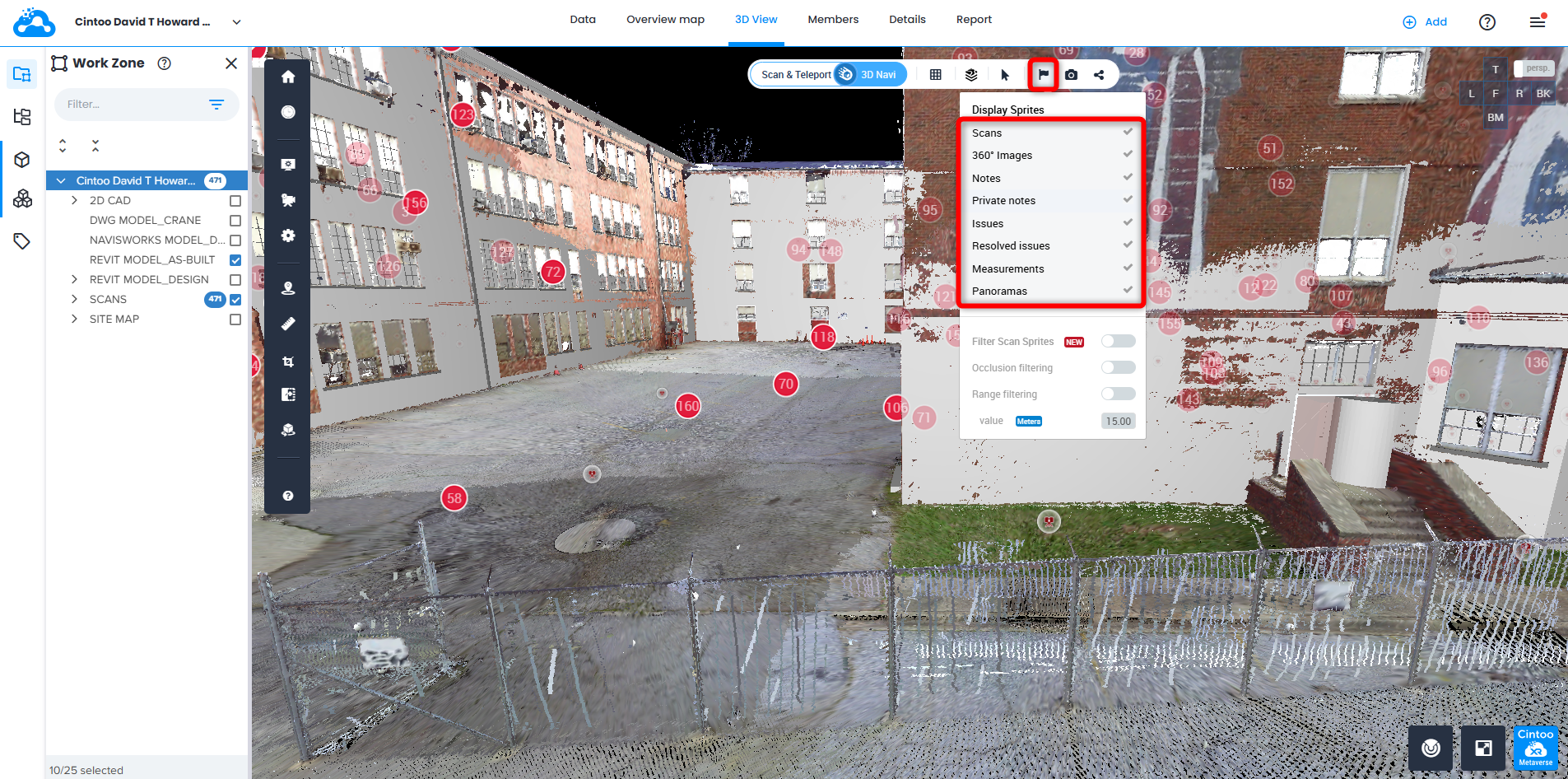

1. On top of the toolbar click on a flag button, Display Sprites and Filter Scan Sprites menu appears.

2. In the list each click on the elements will change the visibility status for Scans, 360 Images, Notes, Private Notes, etc.

All sprites toggled on:

All sprites toggled off:

Note: selection of sprites displayed persists for each user independently and for all projects accessed by this user.

3. The Filter Scan Sprite, Occlusion filtering, Range filtering, Value (Units) are only available in Scan Mode.

4. Toggle on Filter Scan Sprites first to be able to toggle on Occlusion Filtering, Range Filtering and value. Toggling off Filter Scan Sprites disables both filters but saves their configuration. This setting is saved individually on the user profile, which means it is applied to all the projects for a certain user, until changed.

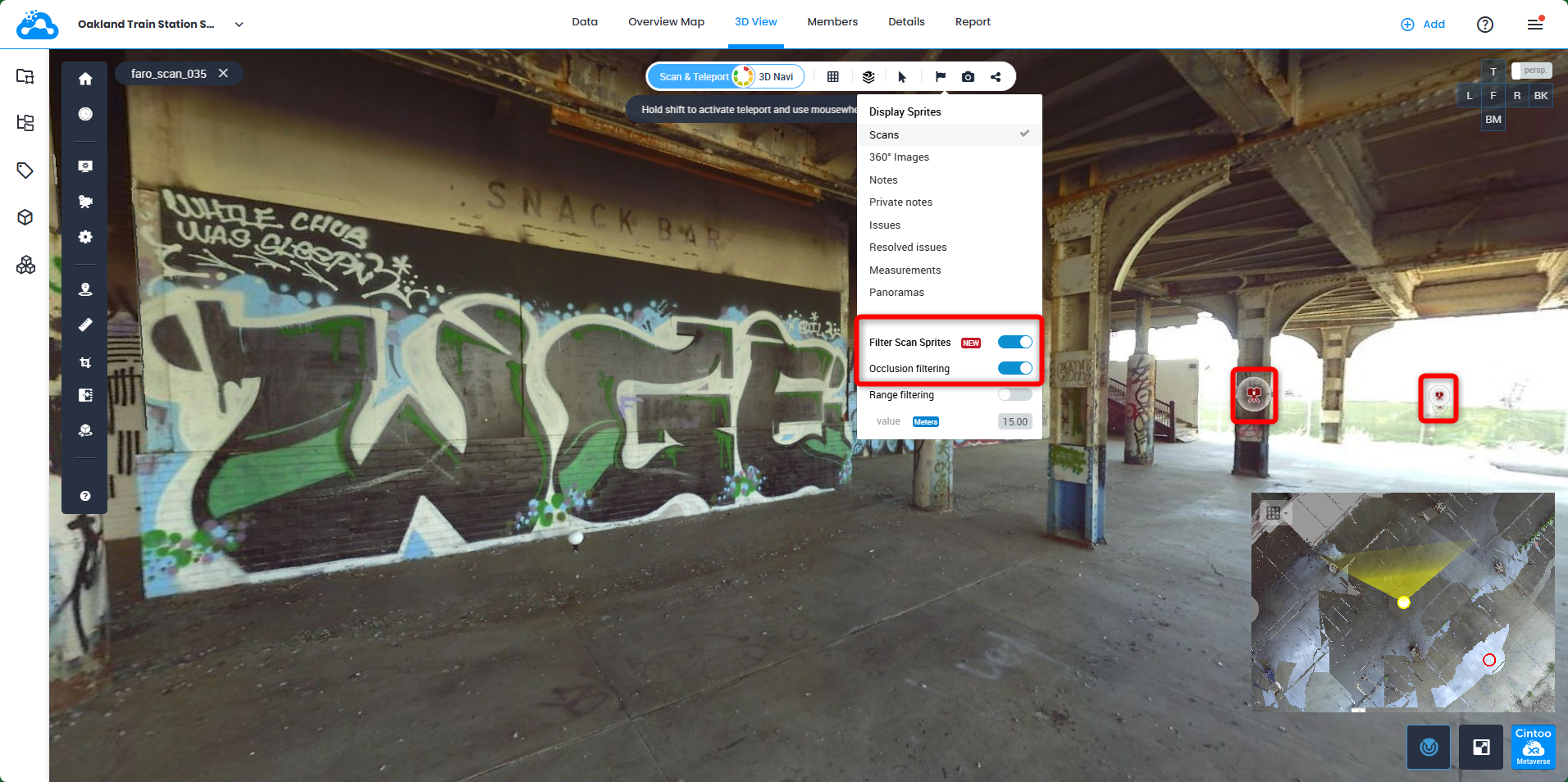

5. Occlusion filtering allows to filter out visually the sprites that are behind visible 3D data - scans and models. Making all the sprites that are not visible to the user from a certain scan position invisible in the viewport. Applicable only for scan positions and not for the 360 Images positions.

Occlusion filtering OFF:

Occlusion filtering ON:

6. Range filtering serves to eliminate from the viewport the visualization of the sprites that are further than value in meters or in feet (user preference). Range filtering works in all directions, solving the issue of visible sprites from other floors of the building, for example. Applicable for both scan positions and

Range filtering OFF:

Range filtering ON (10 meters):

Note: Selection of filtering persists for each user independently and for all projects accessed by this user.
