Import Unified Point Cloud

This article discovers opportunities presented with the new feature for Cintoo Connect - import of Unified Point Cloud. The tool uses Cintoo proprietary algorithm to create the structure for the scan file according to the parameters provided by a user during the import process.

TABLE OF CONTENTS

• Use cases
• Input data
• Setup the import
• Limitations

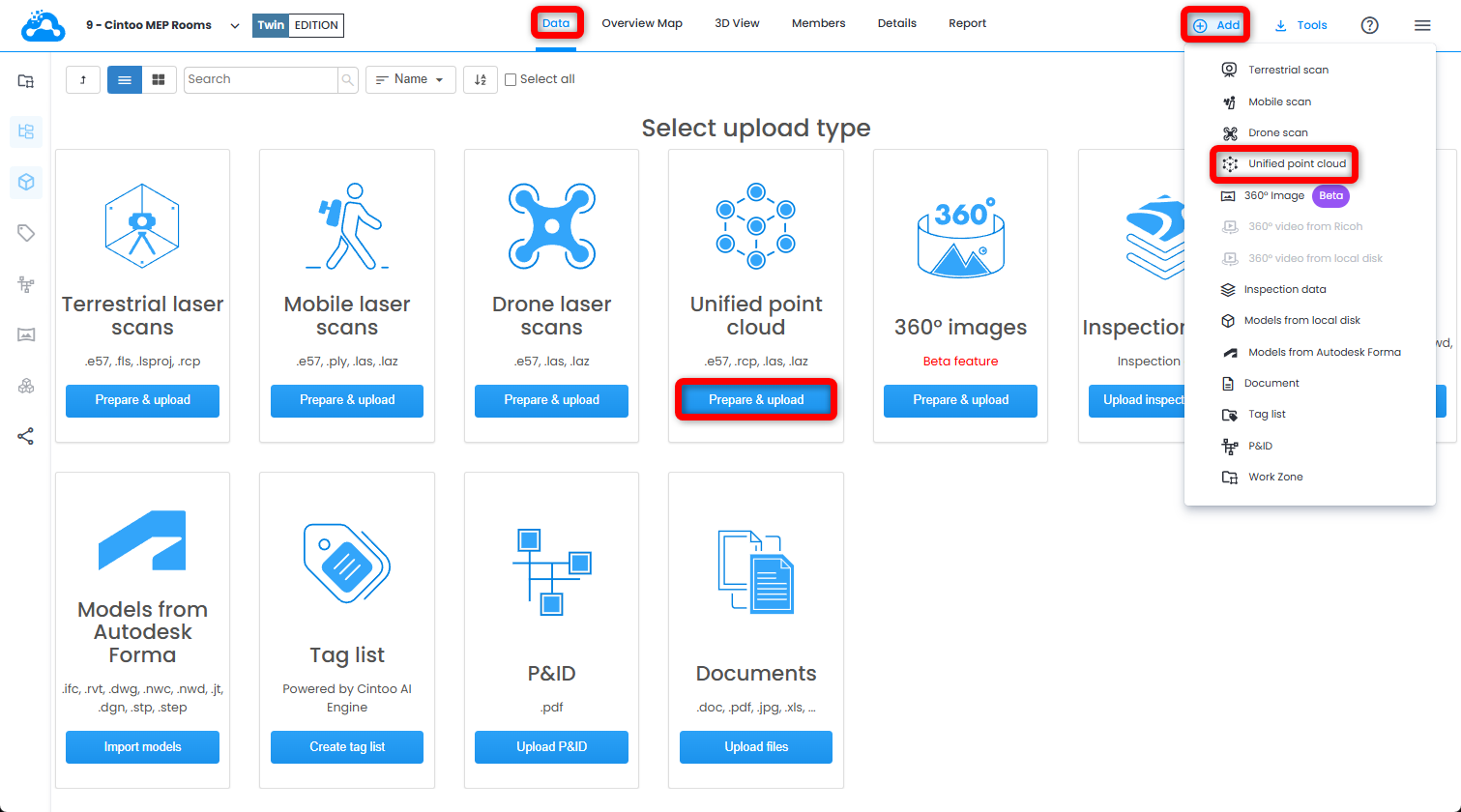

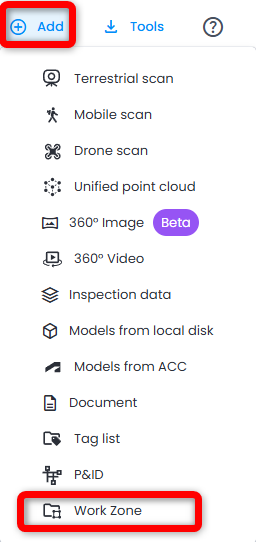

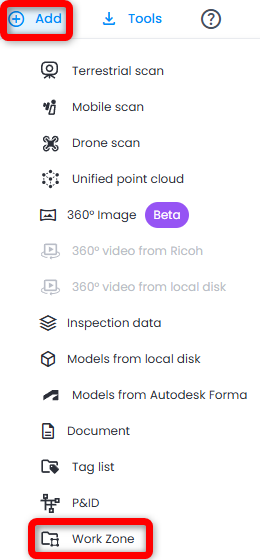

To access the functionality click on Unified Point Cloud option from the dropdown menu on the top right corner in the Web Application.

Use cases

• Scan of the interior of the building, when the structure is absent or lost. This tool provides a unique opportunity to create a new structure of the scan files without any additional effort embedded into Cintoo Connect solution.
• Multimodal approach to scanning e.g. having terrestrial/mobile/drone in one point cloud. The tool allows to create a structure that was nonexistent.
• Non-horizontal drone fly trajectory. To upload a horizontal fly trajectory please use Upload Drone Data.

Note: recommended point cloud density for any scan format is 5mm, in extreme cases it might be increased up to 10mm.

Input data

The following data types are supported for import with Unified Point Could option:

• E57 scans - only one point cloud, no multiple point clouds under one E57 scan file supported.
• unstructured RCP
• LAS and LAZ

Setup the import

1. Parameters that are required to start importing scan data:

• File - path to the file on a local storage.

• Surface covered by each virtual vantage point - parameter that controls the covered surface which affects directly the number of scan positions generated. More surface covered - less scan positions generated. Could be set both by entering the value in the box or moving the slider. Please mind that this parameter is an estimation due to the specifics of the algorithm.


• Elevation of the floors to be processed - parameter that controls the levels. Multiple levels could be introduced with the delimiter of ";" without spaces. For example, scanning was performed inside a building having multiple floors covered, then knowing the each floors elevation a user can set them to be treated separately.

Note: floor levels cover the point cloud data above and below the level set by 25cm. If the scanned terrain has a change of the level above this limit please add another floor level to cover the area. The same principle applies to slopes or steps present in the terrain.

Please closely analyze the scan data to choose the right floor levels. These 2 articles will help to do that within Recap or Cloud Compare. After the scan data is imported into Cintoo please carefully review if all the data has been covered, if not add more floor levels to ensure the full coverage.

• Elevation above floor level - parameter that controls the position of the scanner above the ground level. Meaning that the bubble views would be created at this elevation in the Cintoo project.

2. Parameters that are shown for information purposes:

• Number of points - information about the total amount of points in the point cloud.

• Once Import button is clicked an estimation of the generated virtual vantage points (scan positions) and time estimation is shown in a pop-up window. Click Continue to proceed if the number of VVPs and time estimated is satisfactory.

• Estimated generated virtual vantage points - amount of scan positions to be generated according to the Surface covered by each virtual vantage point parameter controlled by the user.

• Import time magnitude - estimated amount of time that would be required to import the data into Cintoo.

Limitations

Scans in E57 format are imported without images. Images could be imported separately with Import 360 images option.
