Upload FARO Orbis data

This article describes how to export FARO Orbis and FARO Orbis Premium scan data from FARO SCENE and import it into Cintoo. FARO Orbis is supported in Cintoo Connect 2.18 and above.

More about FARO Orbis here: FARO Orbis

TABLE OF CONTENTS

• Understanding FARO Orbis scan types
• Step 1 - Export from FARO SCENE
  • Organize scans in clusters
  • Export Flash scans
  • Export Mobile scans
• Step 2 - Import with Cintoo Connect

Understanding FARO Orbis scan types

FARO Orbis is a hybrid scanning device combining two capture technologies:

• Flash scan - a terrestrial mode that captures high-density static point clouds from fixed positions, using FARO's Flash technology (also referred to as SFC). Processed files with Clean_SFC in their name are Flash scans.
• Mobile scan - a continuous capture mode where the operator moves through the space while scanning. Processed files with Clean_Color in their name are Mobile scans.

These two scan types follow different export and import workflows and must be handled separately before bringing data into Cintoo.

Step 1 - Export from FARO SCENE

Organize scans in clusters

Before exporting, create two separate clusters inside FARO SCENE to organize data:

• One cluster for Flash scans (files containing Clean_SFC)
• One cluster for Mobile scans (files containing Clean_Color)

Keeping these two groups separate ensures a clean, error-free export for each import type in Cintoo.

Export Flash scans

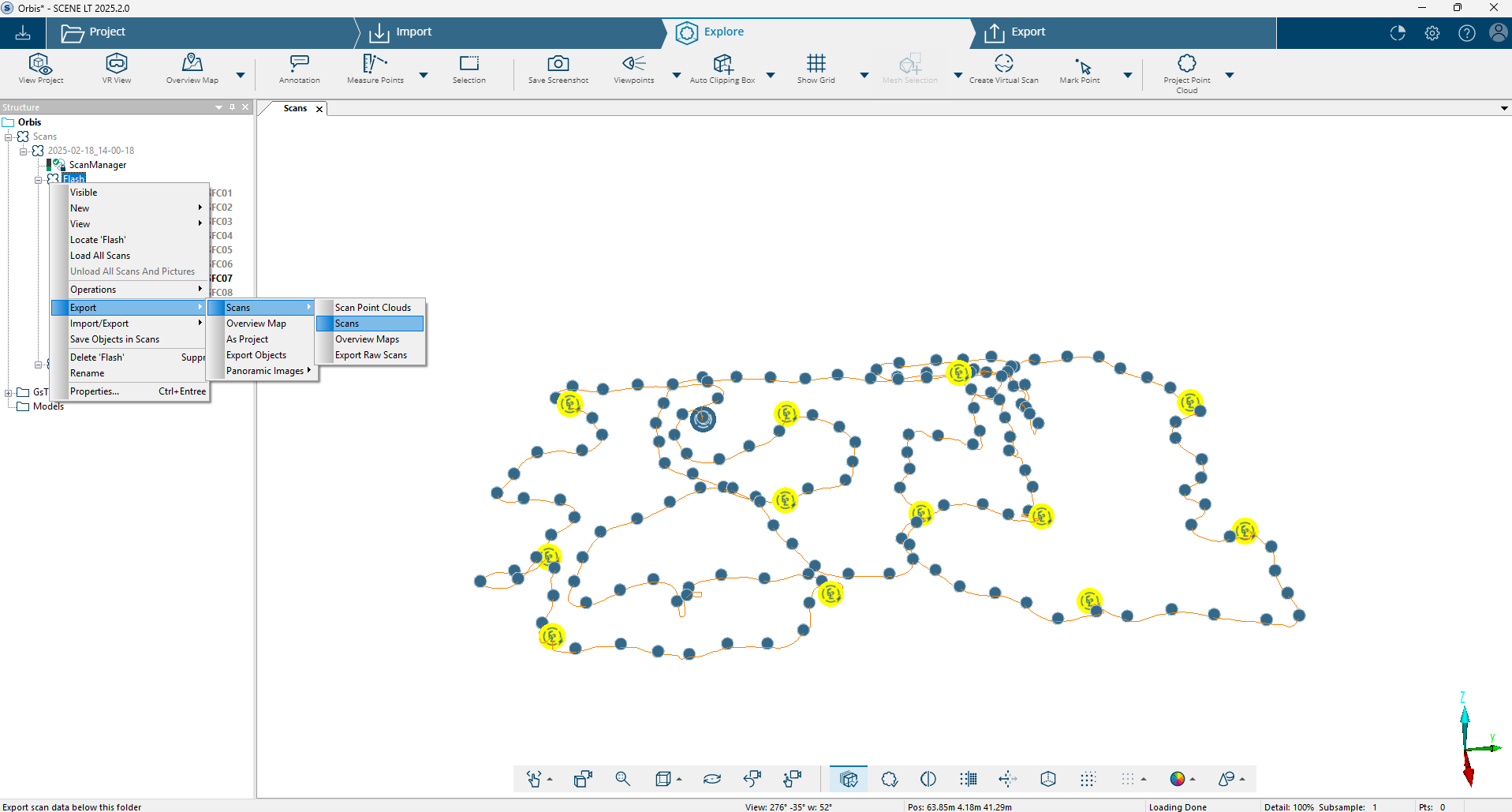

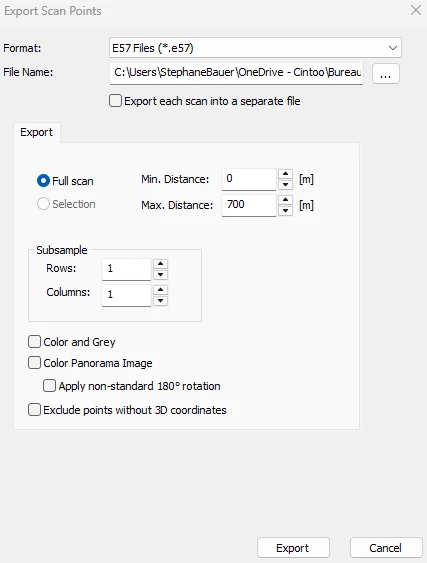

Flash scans must be exported from FARO SCENE as static scan files. In Cintoo, they are imported using the static scan import workflow.

Export Mobile scans

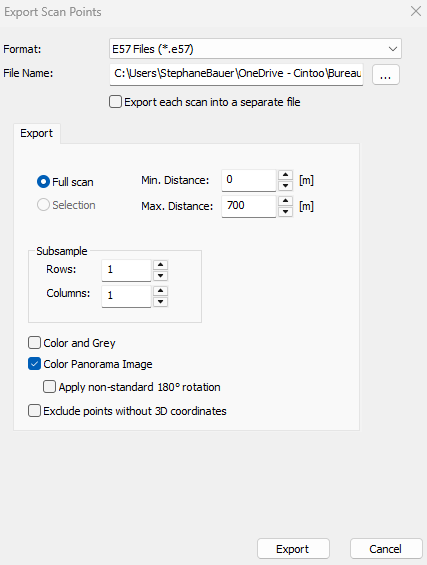

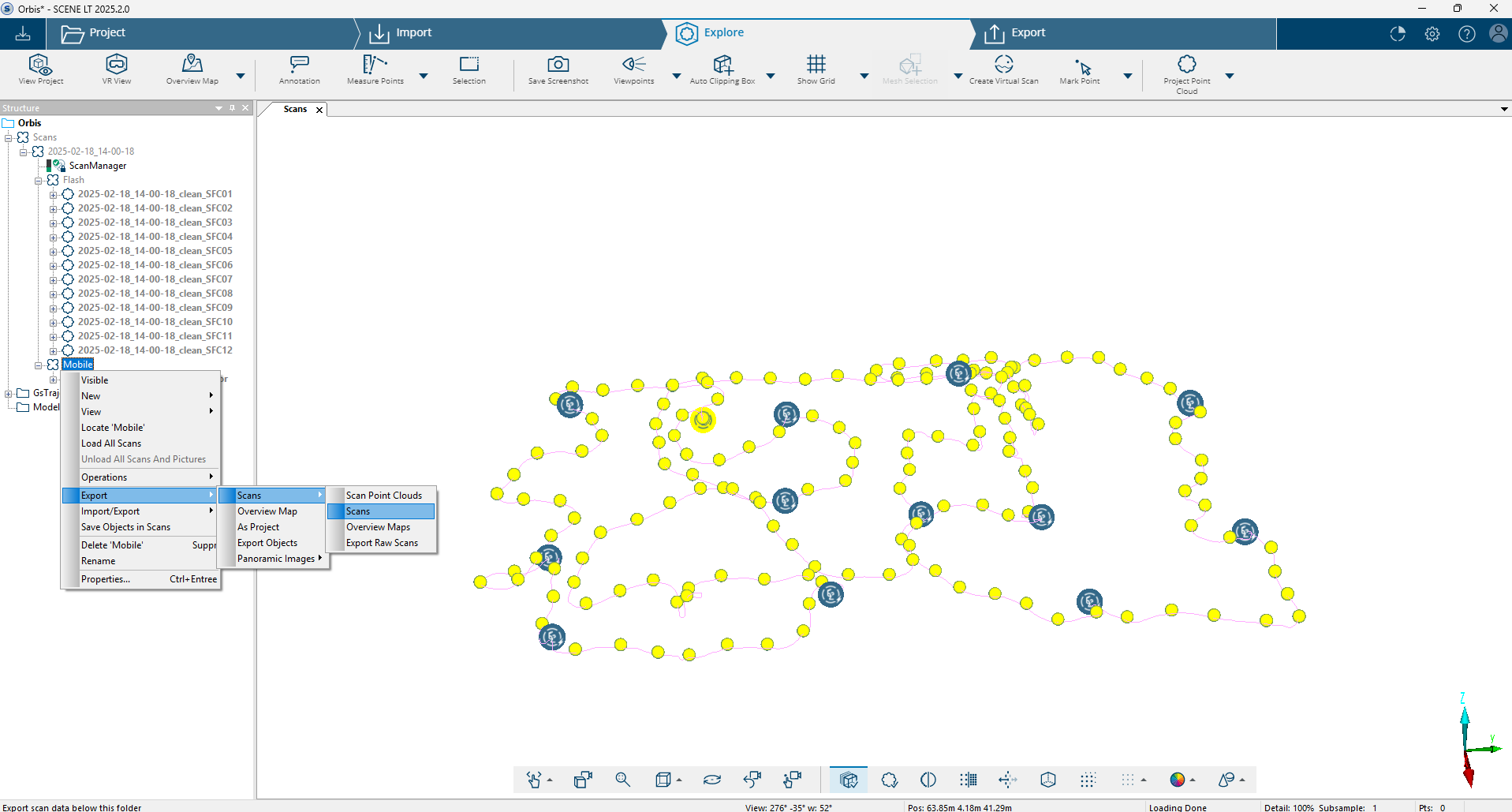

Mobile scans do not store a scan path natively. To allow Cintoo to reconstruct the scan trajectory during import, panoramic images must be exported alongside mobile scan data. Cintoo Connect uses these images to automatically generate the scan path during the mobile import process.

Step 2 - Import with Cintoo Connect

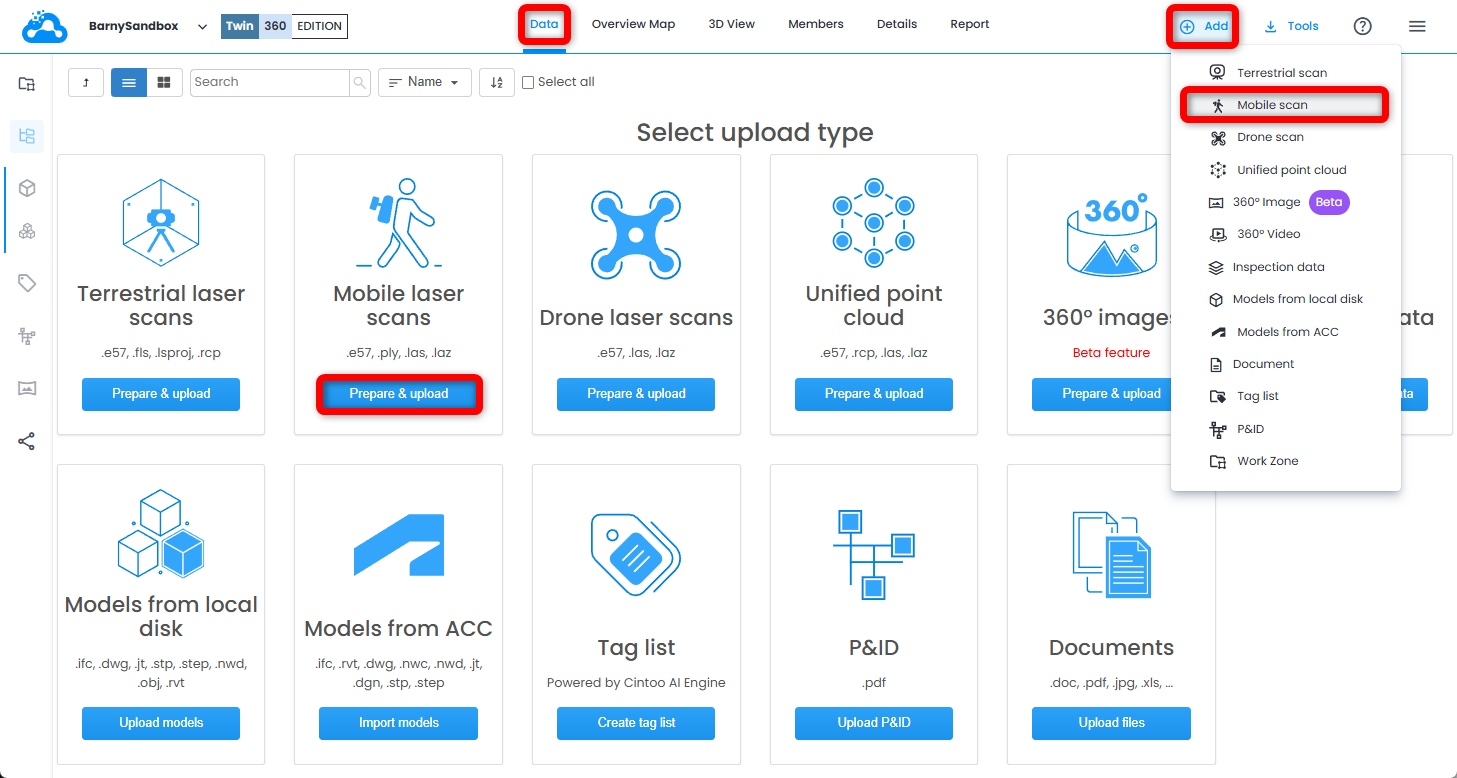

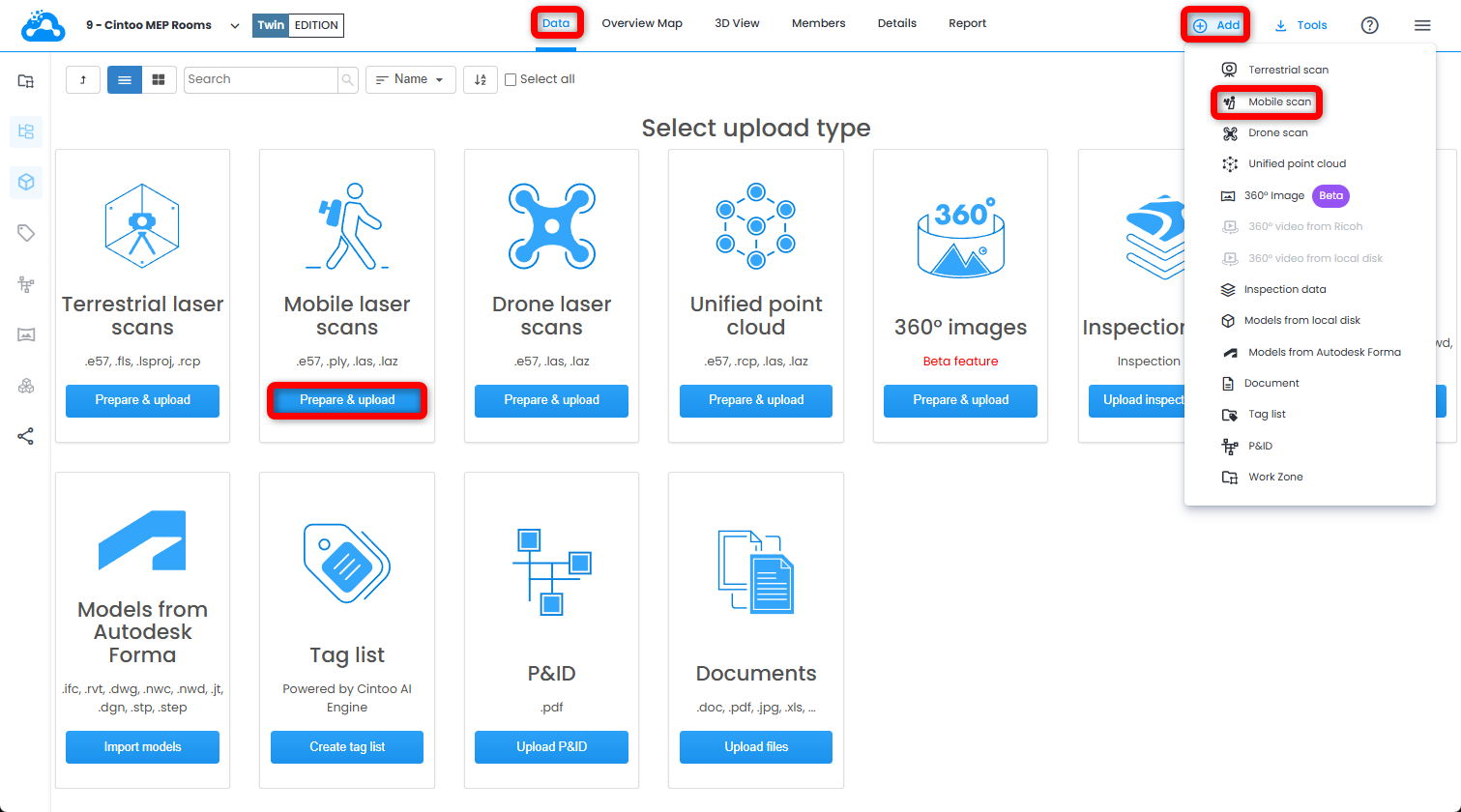

1. Open Data tab and click Prepare & upload on Mobile laser scans tile or click Mobile scan from Add drop-down menu on the top right. Cintoo Connect will launch.

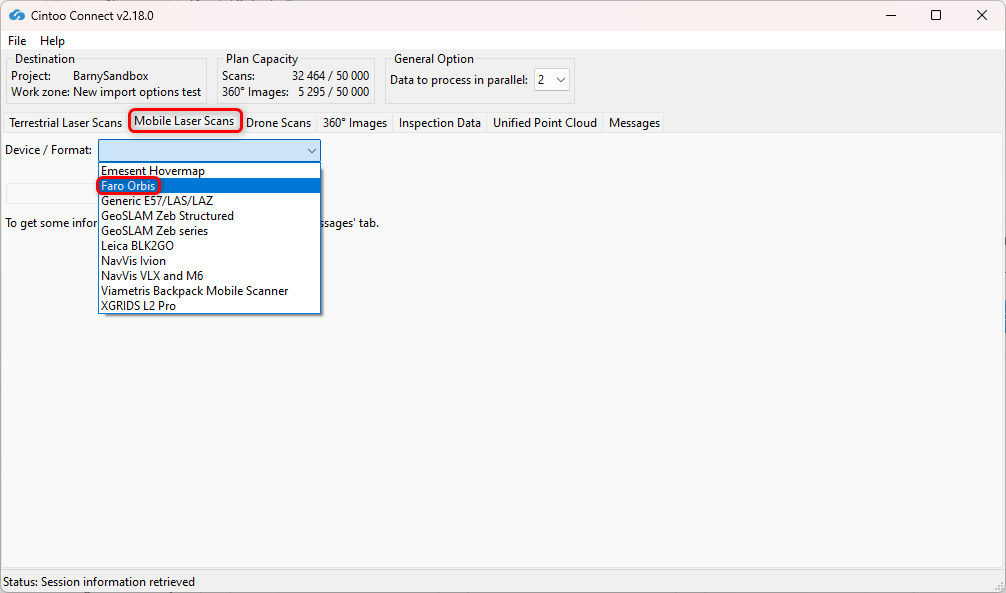

2. In Mobile Laser Scans tab in Cintoo Connect, select Faro Orbis as source Device/Format.

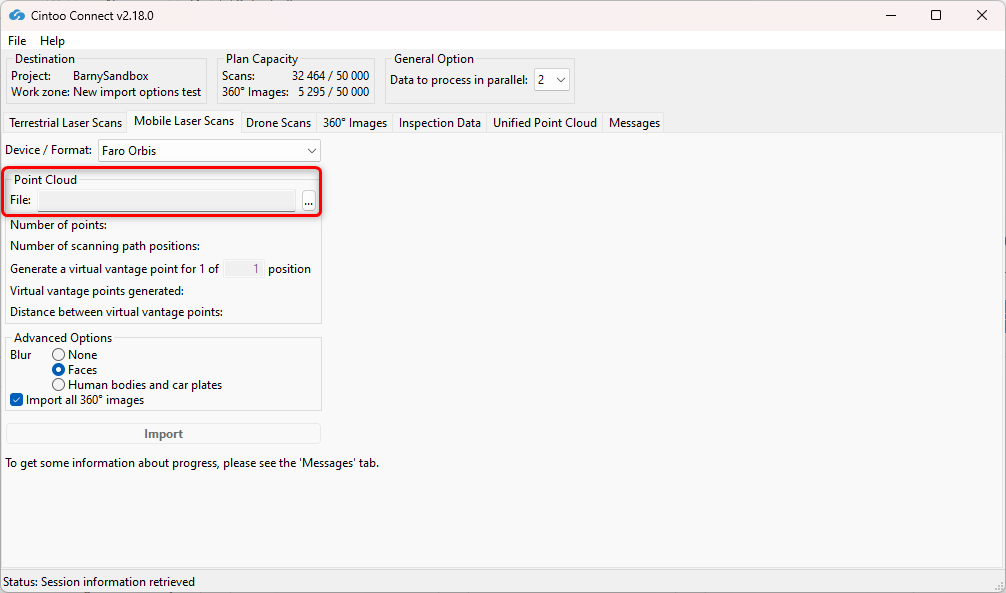

3. Select the point cloud file exported from FARO SCENE as Point Cloud.

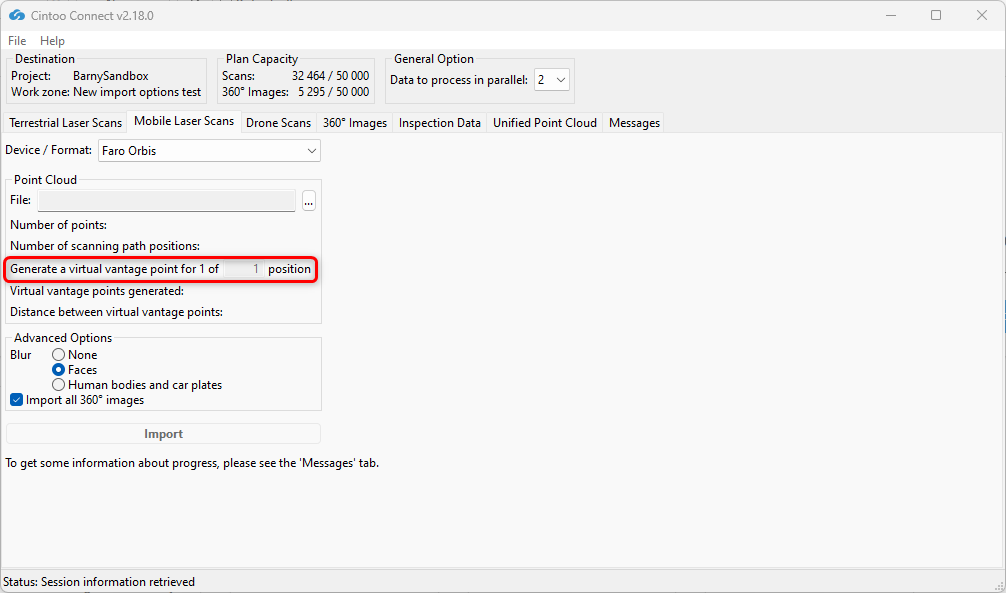

4. Modify Positions sampling (decimation) as needed:


• 1 of 1 - all scan positions are imported (full density)
• 1 of 2 - every other position is imported, doubling effective spacing
• Higher values reduce VVP count further, with proportional reduction in detail

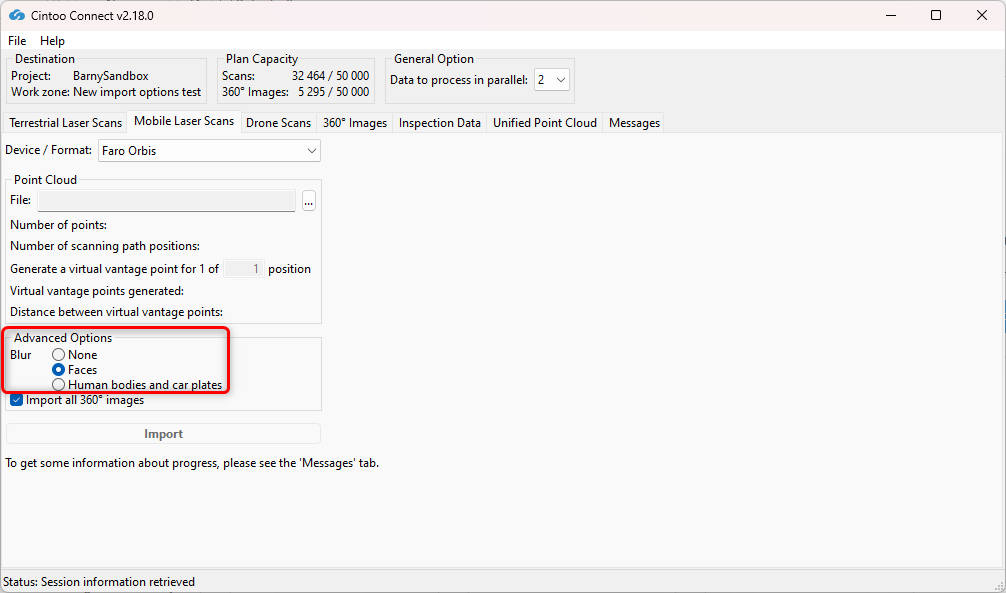

5. Enable or disable Blur - Faces:


• This option is enabled by default, choose option None to not apply any blurring.
• This option automatically blurs faces captured in any panoramic images included in scans being uploaded to Cintoo.
• Blurring cannot be undone in Cintoo after scans have been uploaded.
• Any files uploaded without Blur Faces option enabled must be deleted from Cintoo project and re-uploaded with option checked to apply automatic face blurring.

6. Enable or disable Blur - Human bodies and car plates:

• This option is disabled by default, option Faces is chosen.
• Enable this option to automatically blur human bodies including faces and car plates captured on any panoramic images included in scans being uploaded to Cintoo.
• Blurring cannot be undone in Cintoo after scans have been uploaded.
• Any files uploaded without Blur Human bodies and car plates option enabled must be deleted from Cintoo project and re-uploaded with option checked to apply automatic blurring.

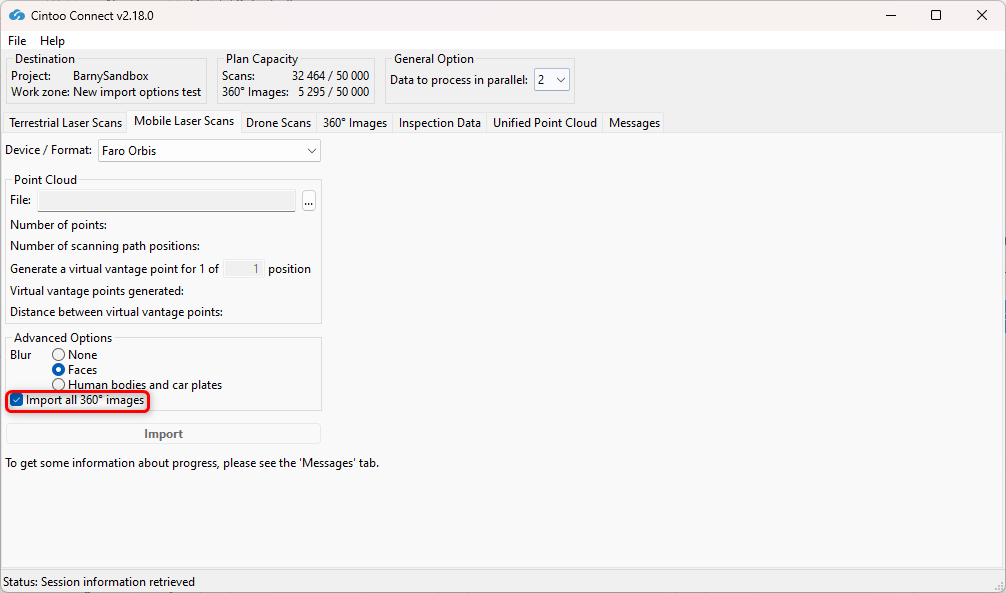

7. Enable or disable Import all 360 Images.


• This option is checked by default, enabling import of all 360 images included in scans, even if using a position sampling value other than 1 of 1 position.
• Uncheck this option to prevent automatic import of all 360 images included in scans.
• 360 images uploaded with this option will count in 360 Images capacity of Cintoo account, not Scan capacity.
• 360 images uploaded with this option will not contain any 3D data. Only panoramic image will be displayed, so 3D display settings, Measurements, and Annotations cannot be used at these positions.
• This option is useful when broad visual coverage is needed while managing project size.

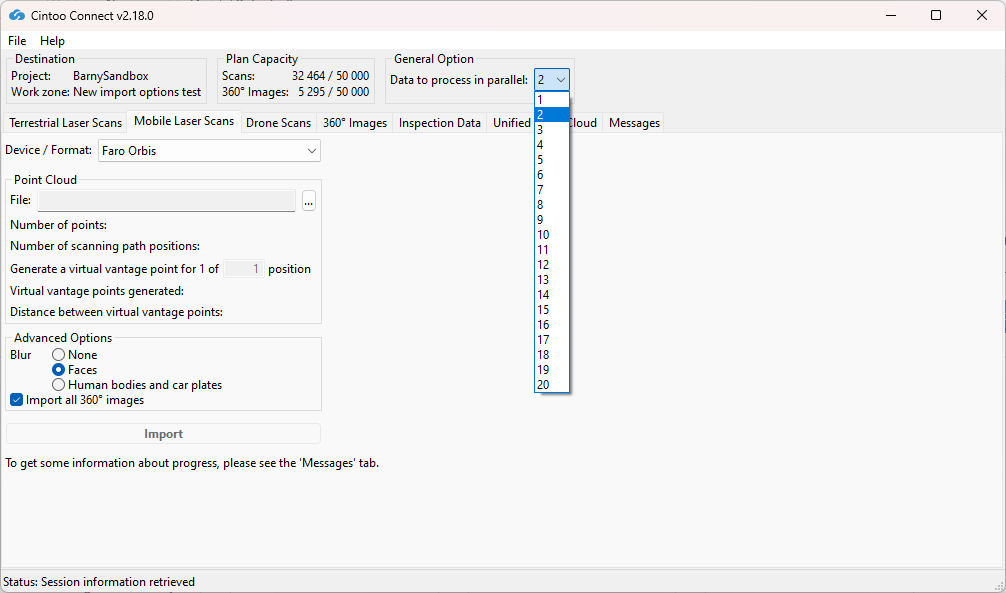

8. Modify Data to process in parallel value as needed and according to available PC cores. With a multi-core PC it is possible to process more than 2 scans (default setting) in parallel.
   On average, at least 400 MB of RAM per 10 million pixels is needed to process. For example:

• 8 GB of RAM will allow to process 5 scans of 40 million pixels each in parallel.
• 64 GB of RAM will be needed to process 5 scans of 160 million pixels each in parallel.

9. Click Import.

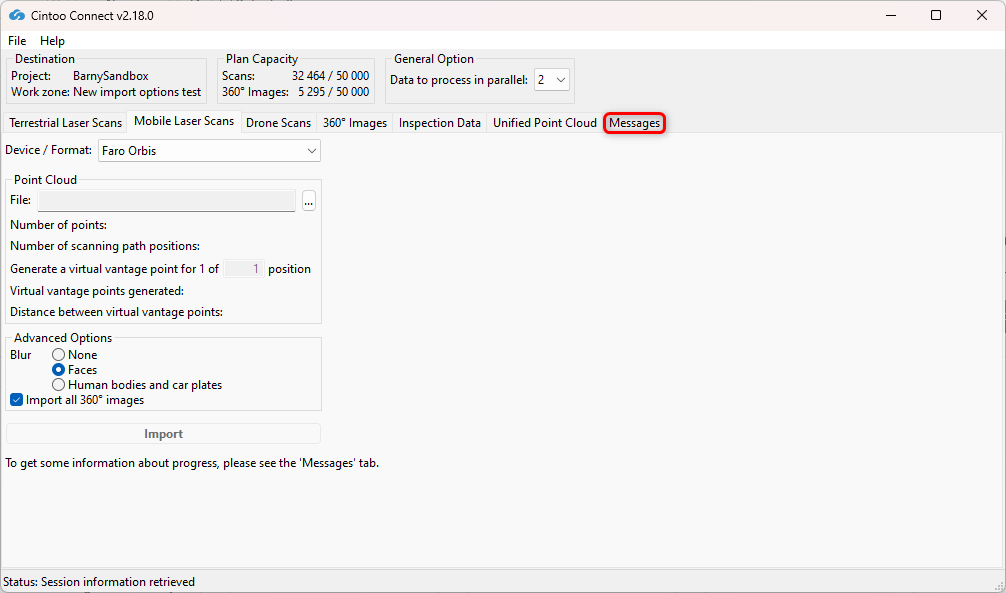

• Check Messages tab from time to time to see if the process is running smoothly.
• New 3D scans appear one by one in Cintoo project.
