VR actions - Comparison

This article describes tool dedicated to visually compare scans and CAD models in Cintoo Workspace application.

At least one scan and one model should be active.

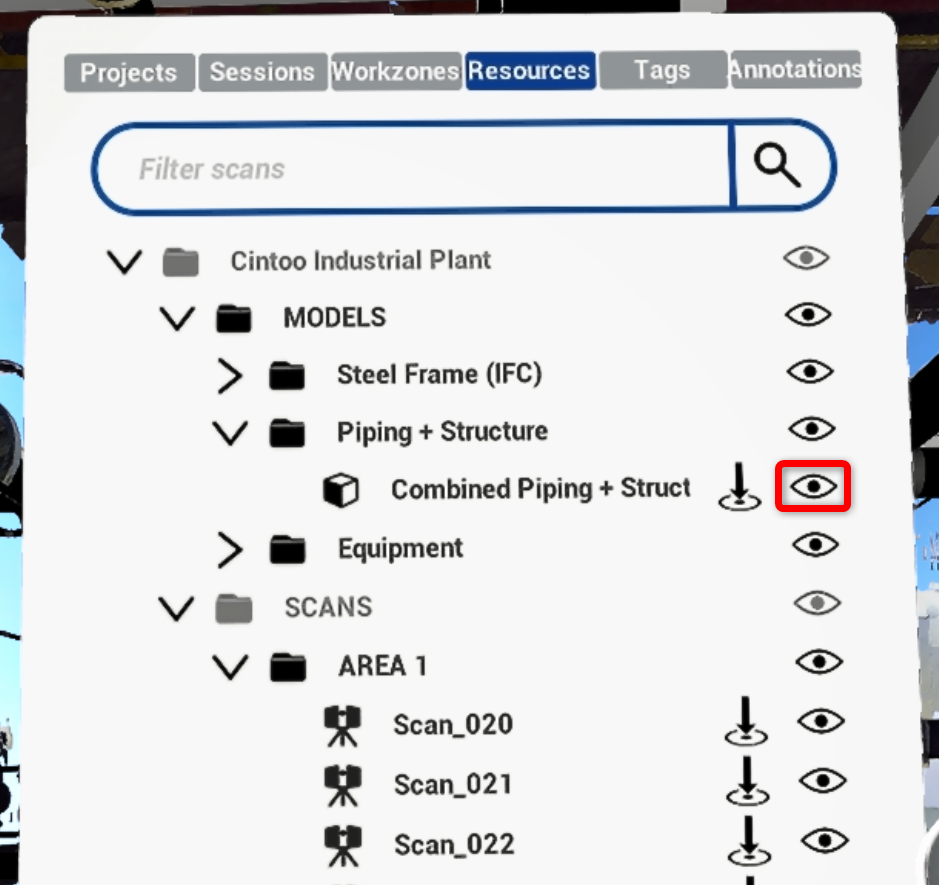

Activate a model from Resources tab using open eye icon - its work zone must be ticked in Workzones tab.

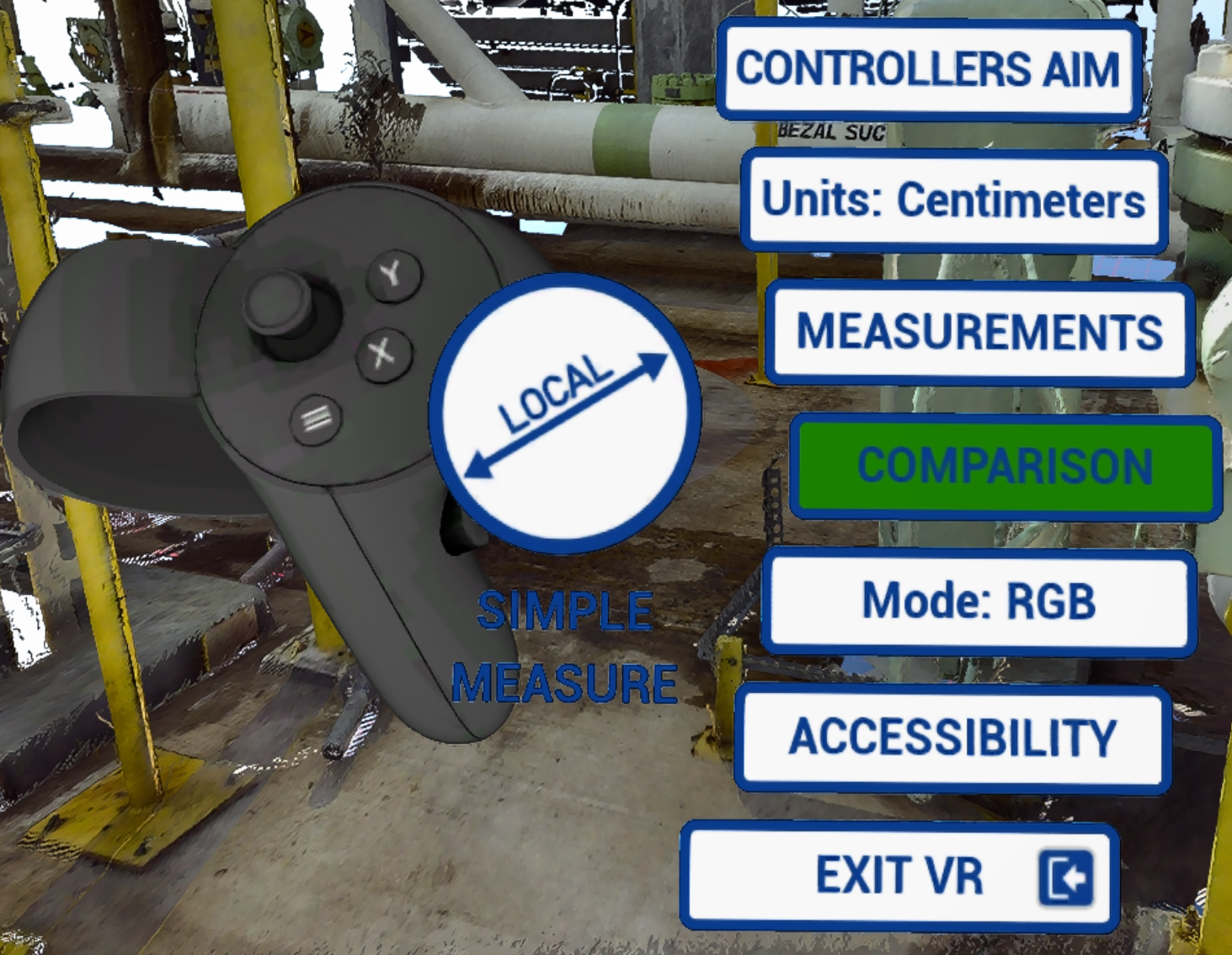

Press Y on Tools controller to open VR Tools menu. Select an entry by clicking it with Navigation controller, or move through entries with Tools controller joystick and select Comparison with Tools controller trigger.

For now, only Visual Check is available in Comparison mode.

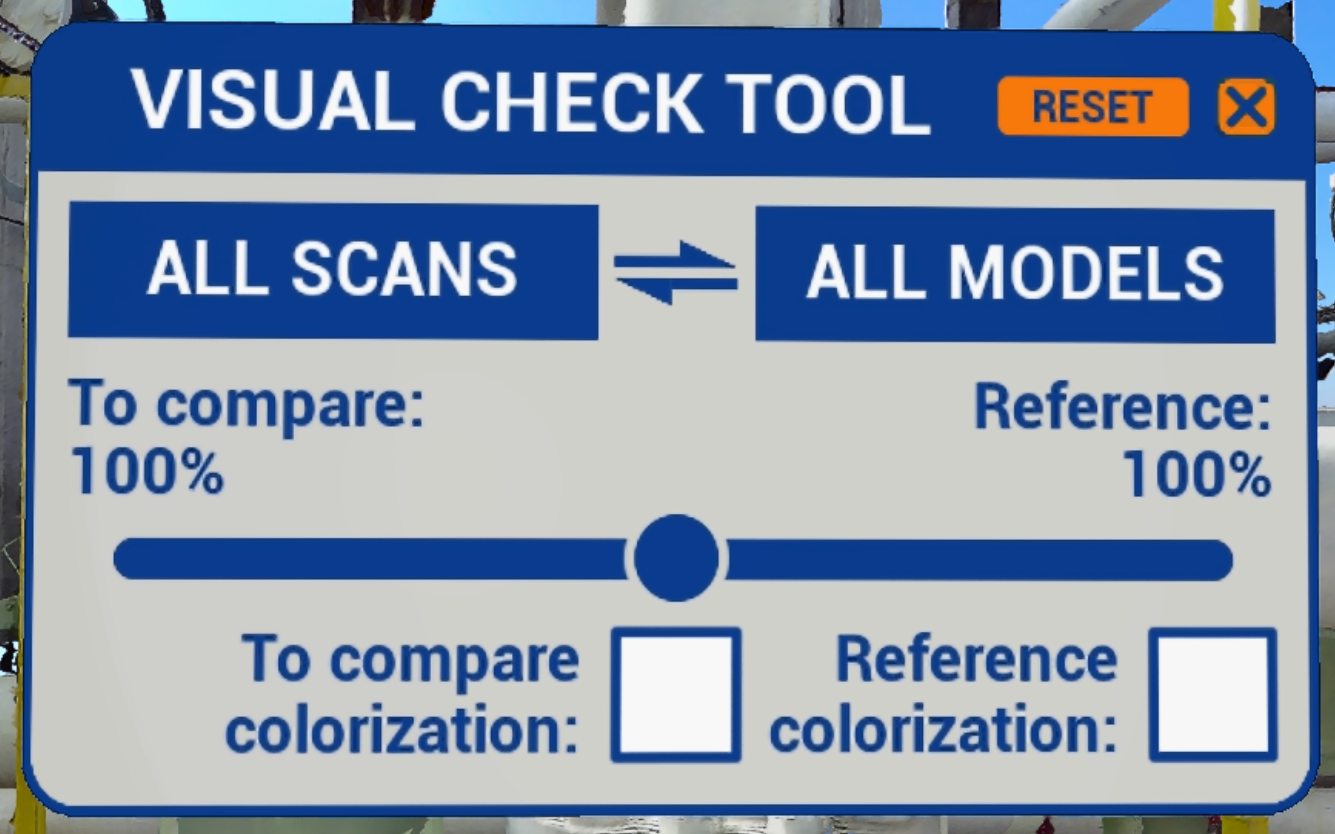

Dialogue box with comparison opens. Window itself could be moved by pressing Navigation controller trigger on the title of the window.

Control transparency for scans or models by moving the point on the line with trigger button on Navigation controller. Models could be swapped with scans by clicking on the double-directional arrow between All scans and All models.

Press white squares at the bottom of the window to open two additional panels with RGB color bars. Manipulate color bars with Navigation controller trigger to change color contribution to the colorization tool.

An example of visual comparison.

To remove comparison colors click Reset. Until Reset button is pressed visualization stays in comparison mode with corresponding color changes implemented, even if Visual Check Tool window is closed.
