Pipe Measurements

This article describes pipe measurement functionality in Cintoo.

Permissions: only users with roles including Measure permission can save measurements.

TABLE OF CONTENTS

Requirements and Recommendations
Create Pipe Measurement

Requirements and Recommendations

Measurements can be performed in Cintoo in 3D View in either Scan&Teleport mode or 3D Navi mode.

Measurements cannot be performed in 2D Panoramic display mode. It must be one of 3D display modes. Once a measurement has been created, it can be viewed in 2D Panoramic mode as well.

Warning: avoid saving measurements to root work zone as with project growth managing objects would become challenging.

Instead create a dedicated work zone with a clear name to store measurements in one place or save them to the same work zone where associated data is stored.

Create Pipe Measurement

1. Click on Measurements icon on the vertical tool bar on the left side of the screen.

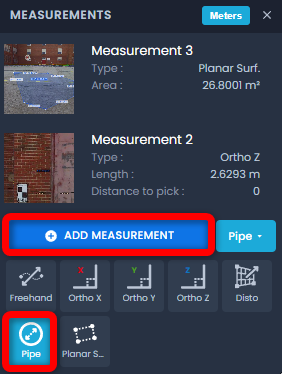

2. Click the drop-down menu next to the Add Measurement button, select Pipe and click Add measurement.

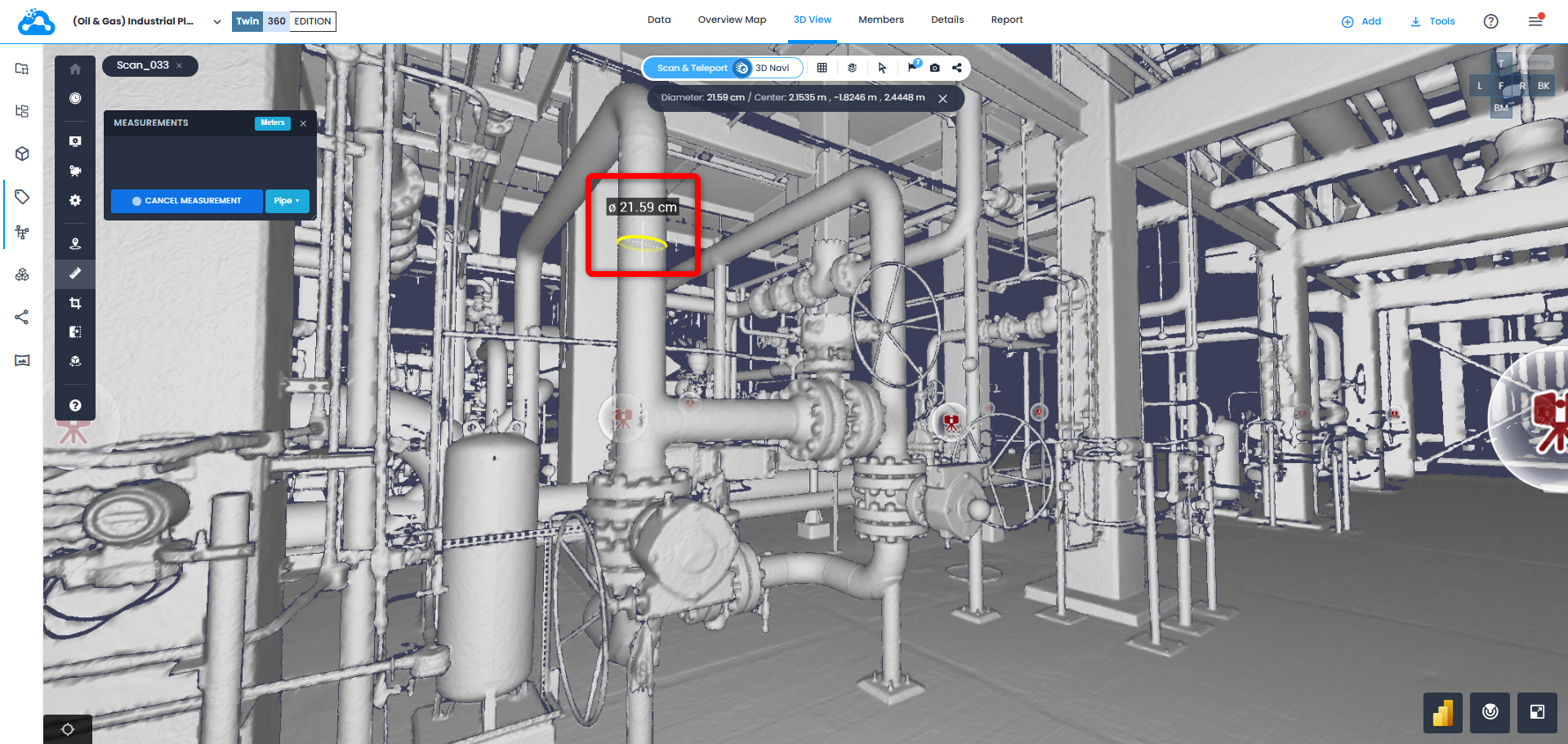

3. Hover mouse cursor over any cylindrical element and left-mouse click to place the pipe measurement.

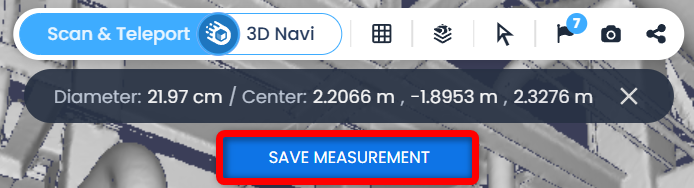

4. Click Save Measurement to save pipe measurement to Measurements list.

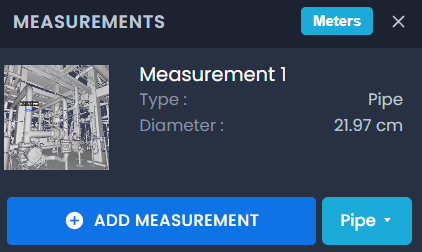

6. In Measurements list, saved pipe measurements will display as type Pipe with Diameter measurement shown.

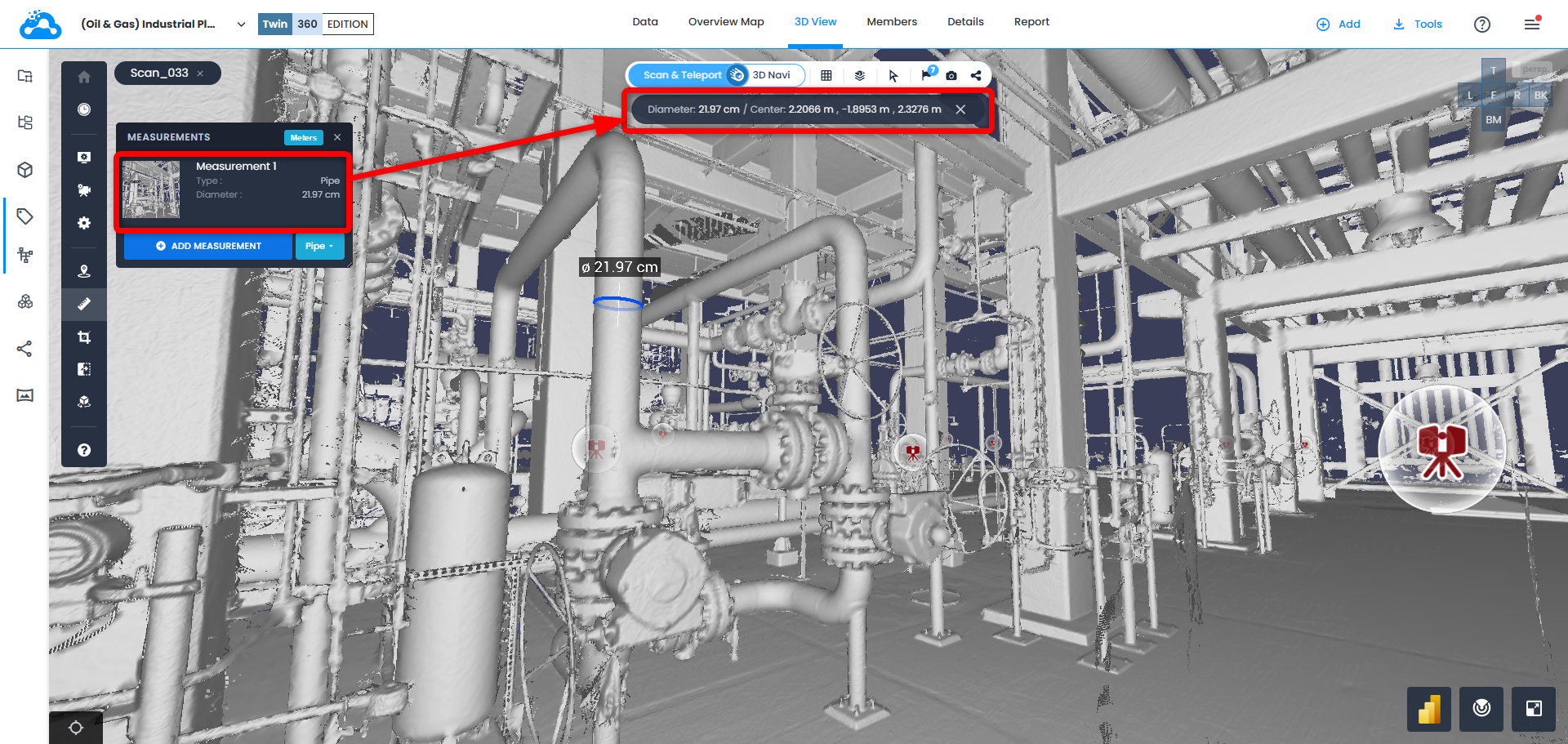

7. Opening a pipe measurement from Measurements list will also display Diameter and Center point (shown as XYZ coordinates) under the central toolbar.

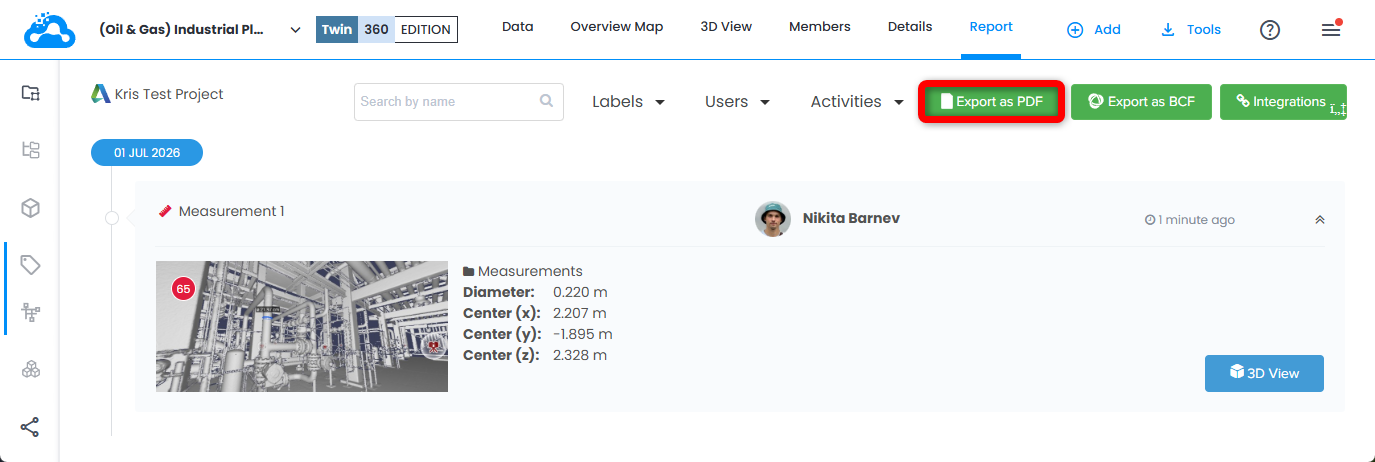

8. Pipe measurements are also available via Report tab, from which they can be exported in a PDF or BCF file.
