Discover the Application

Following this article, you will get to know Cintoo VR Experience application, log into your Cintoo account and tenant.

1. Install the application called Cintoo VR Experience, following the standard installation procedure.
2. Launch the application by double clicking CintooVRExperience.exe.

   Note : It’s possible the Windows protected you PC dialogue appears, click More info and click Run anyway.

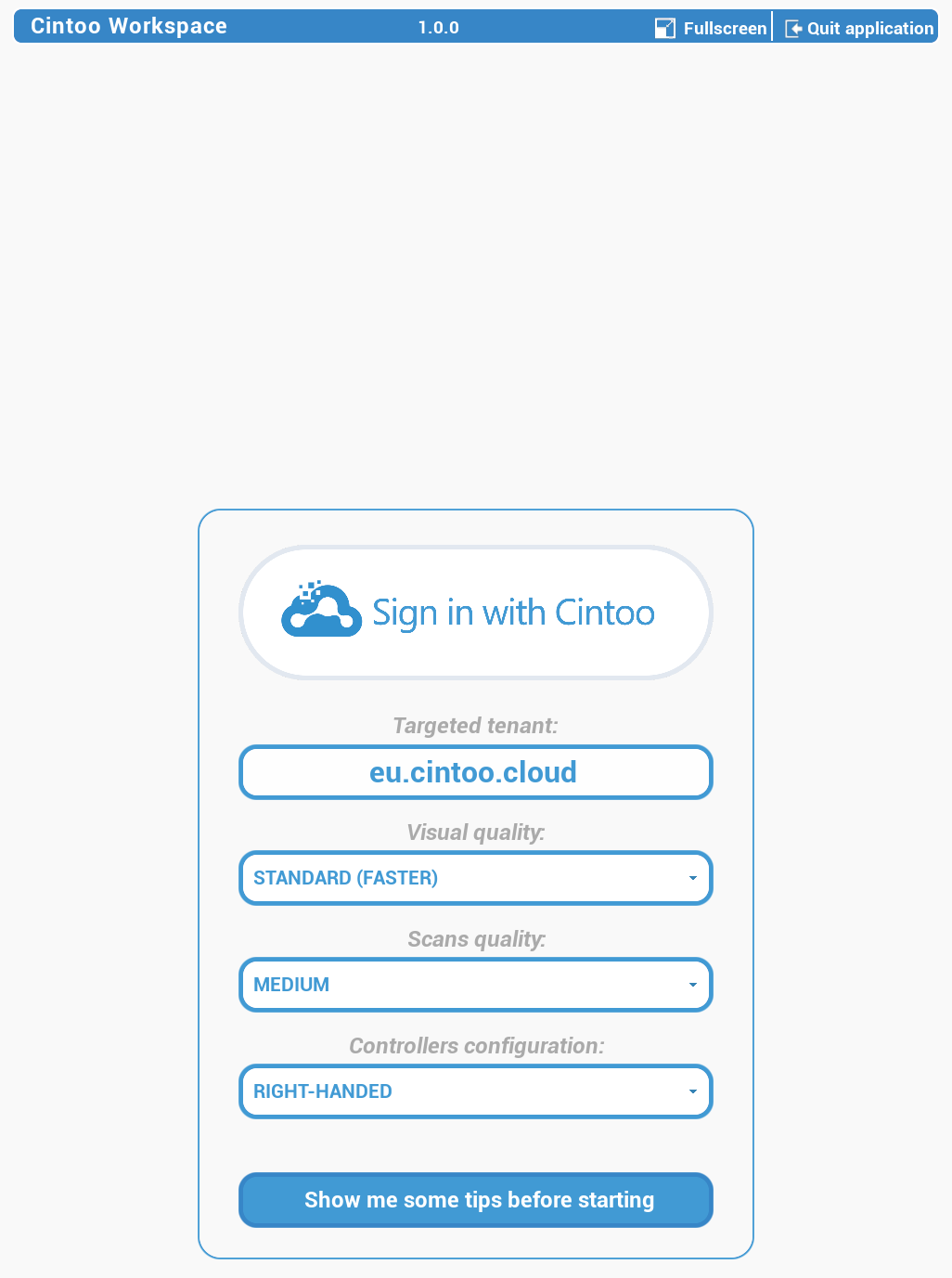

   The starting menu with options to sign in with a Cintoo account, choose a tenant, choose visual quality and set up the controllers will be displayed:

3. Define the Targeted tenant. By default, the tenant is aec.cintoo.com even if the field is empty.

   • For EU tenant, type “aec.cintoo.com” or "eu.cintoo.cloud” 
   • For US tenant, type “us.cintoo.cloud” 
   • For custom tenant, type “[company name].cintoo.cloud” 

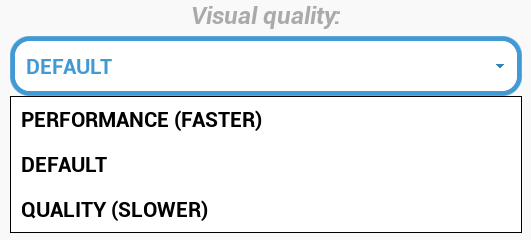

4. Set the Visual quality that fits best your needs

   • Best for close-up visualization - close-up elements will be sharp and crisp, but elements above 4-5 meters will be less well stabilized, giving a sense of vibration. Best for precise close-up inspections. 
   • Best for mid-range visualization- best for large inspections. Less crisp and sharp, but more stabilized and no vibration feeling. 
5. Choose Controllers configuration

   • Right-handed
   • Left-handed
6. Review controls by clicking Show me some tips before starting

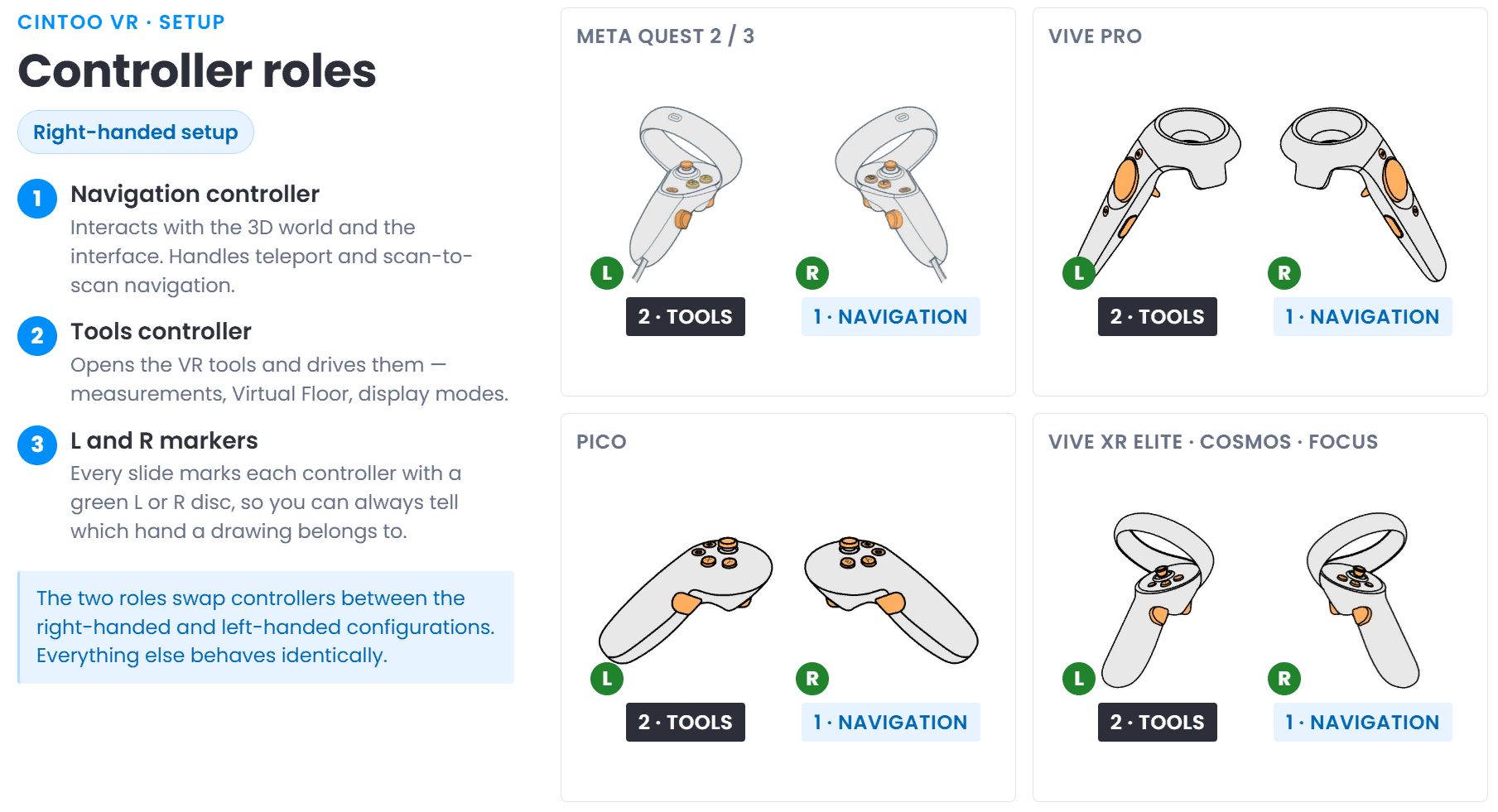

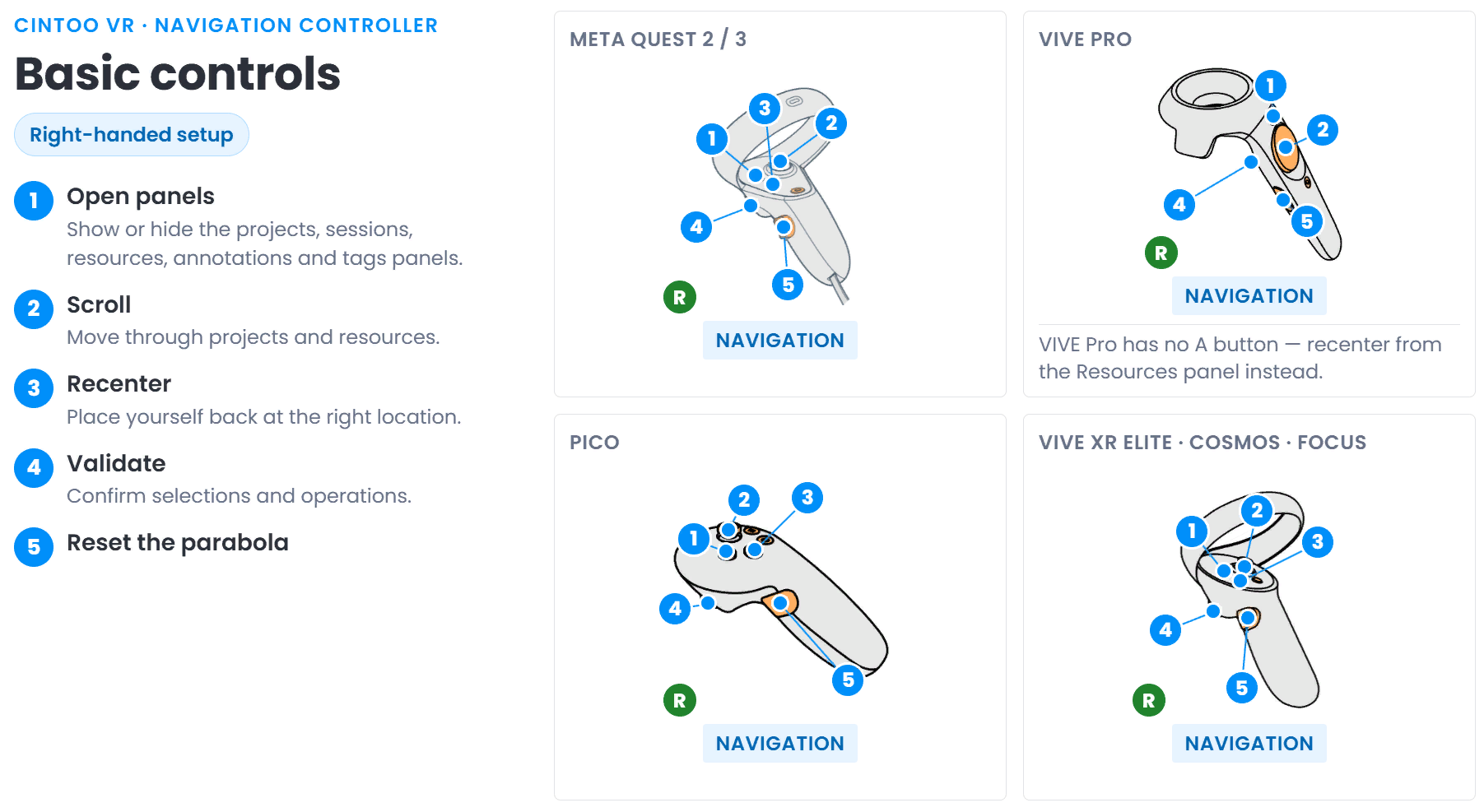

   • Basic controls

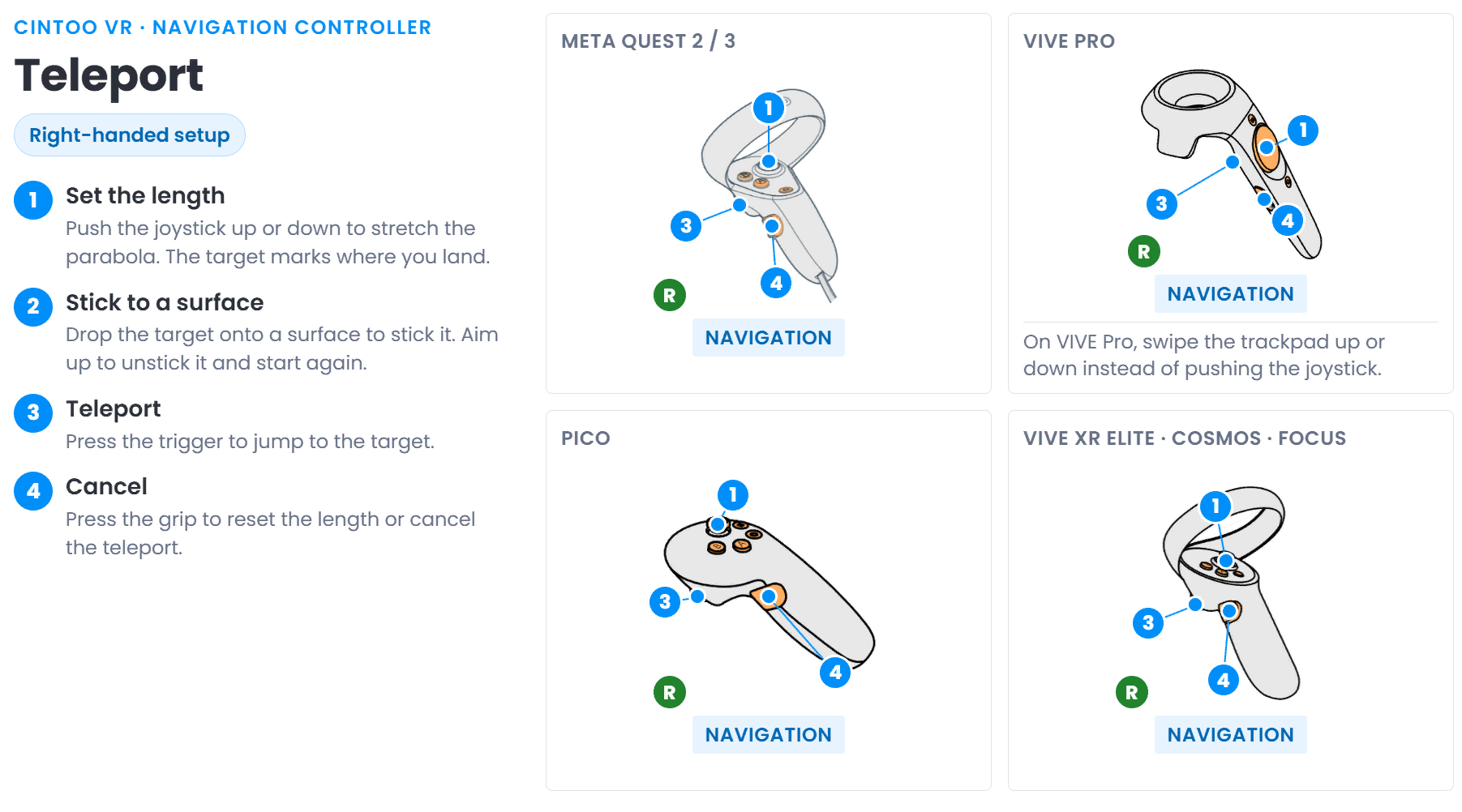

   • How to teleport

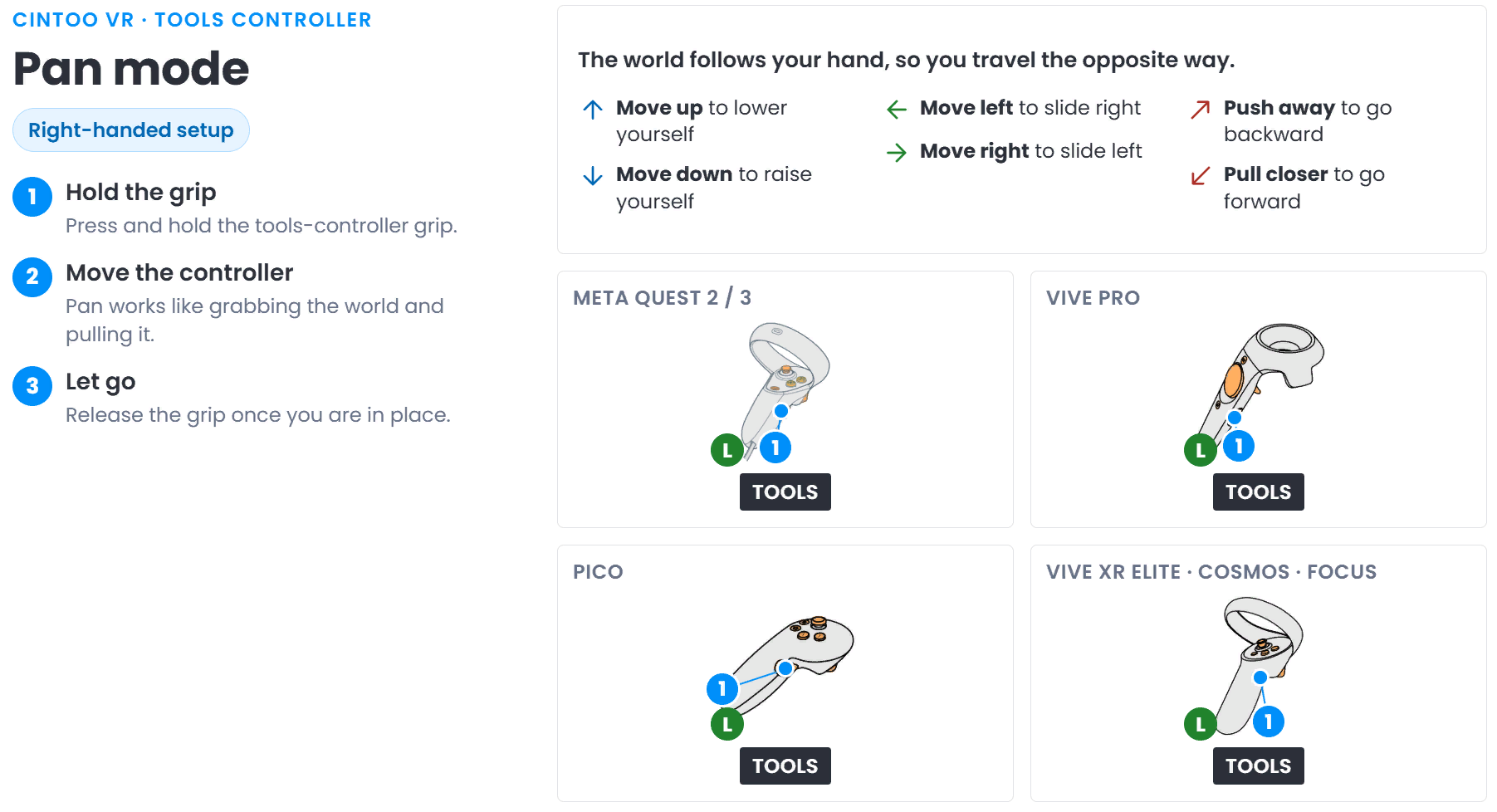

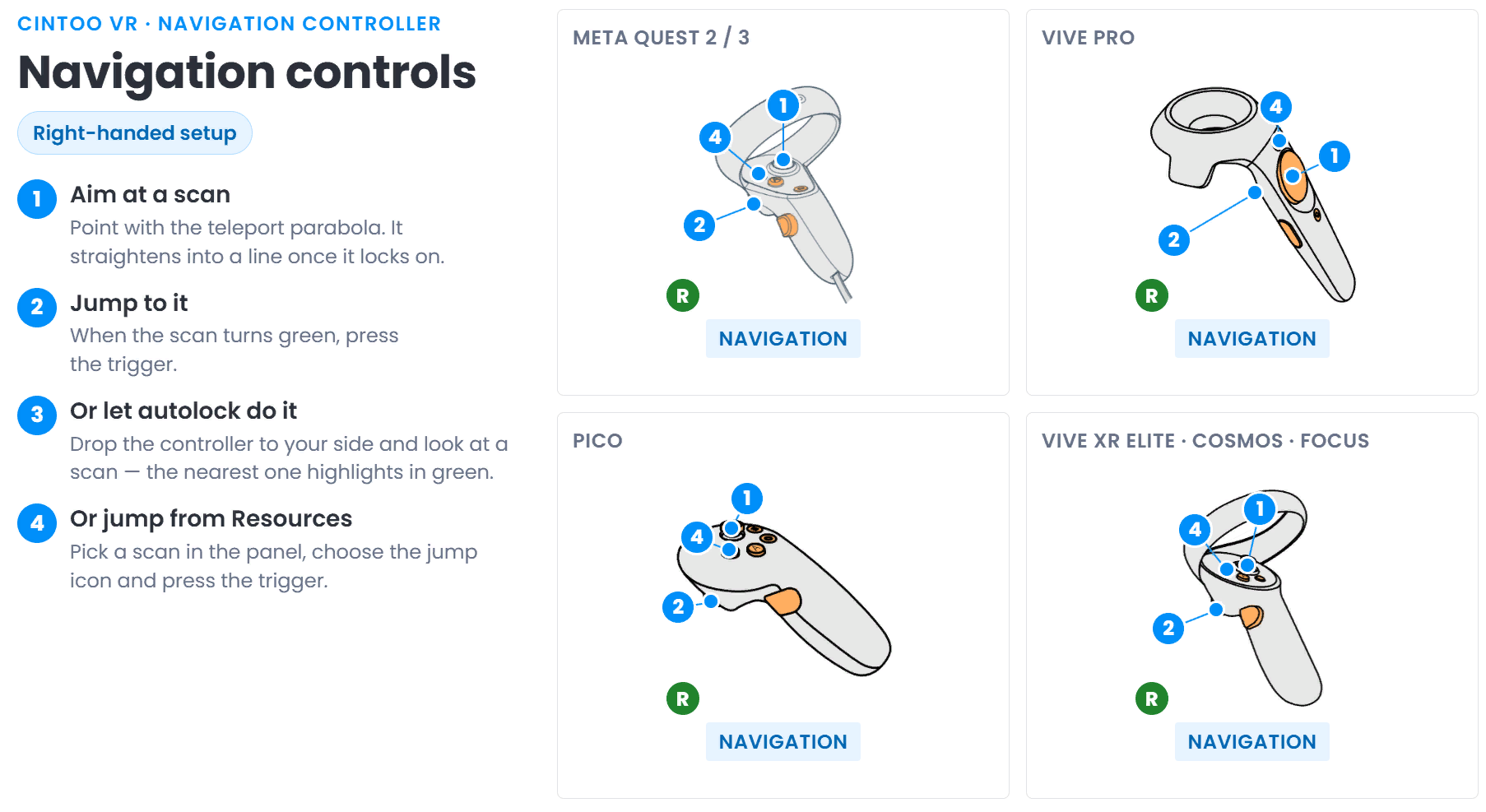

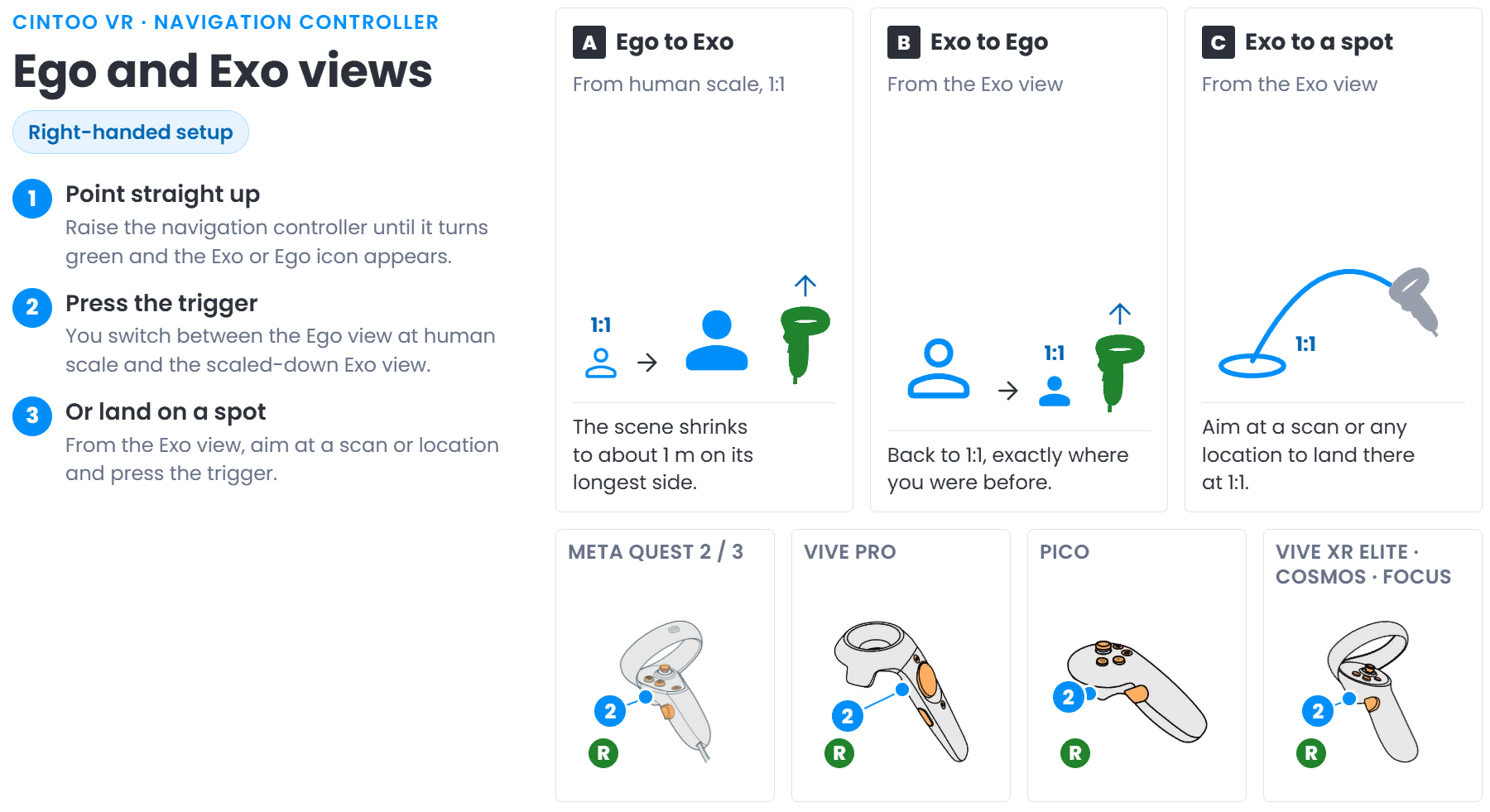

   • Navigation controls

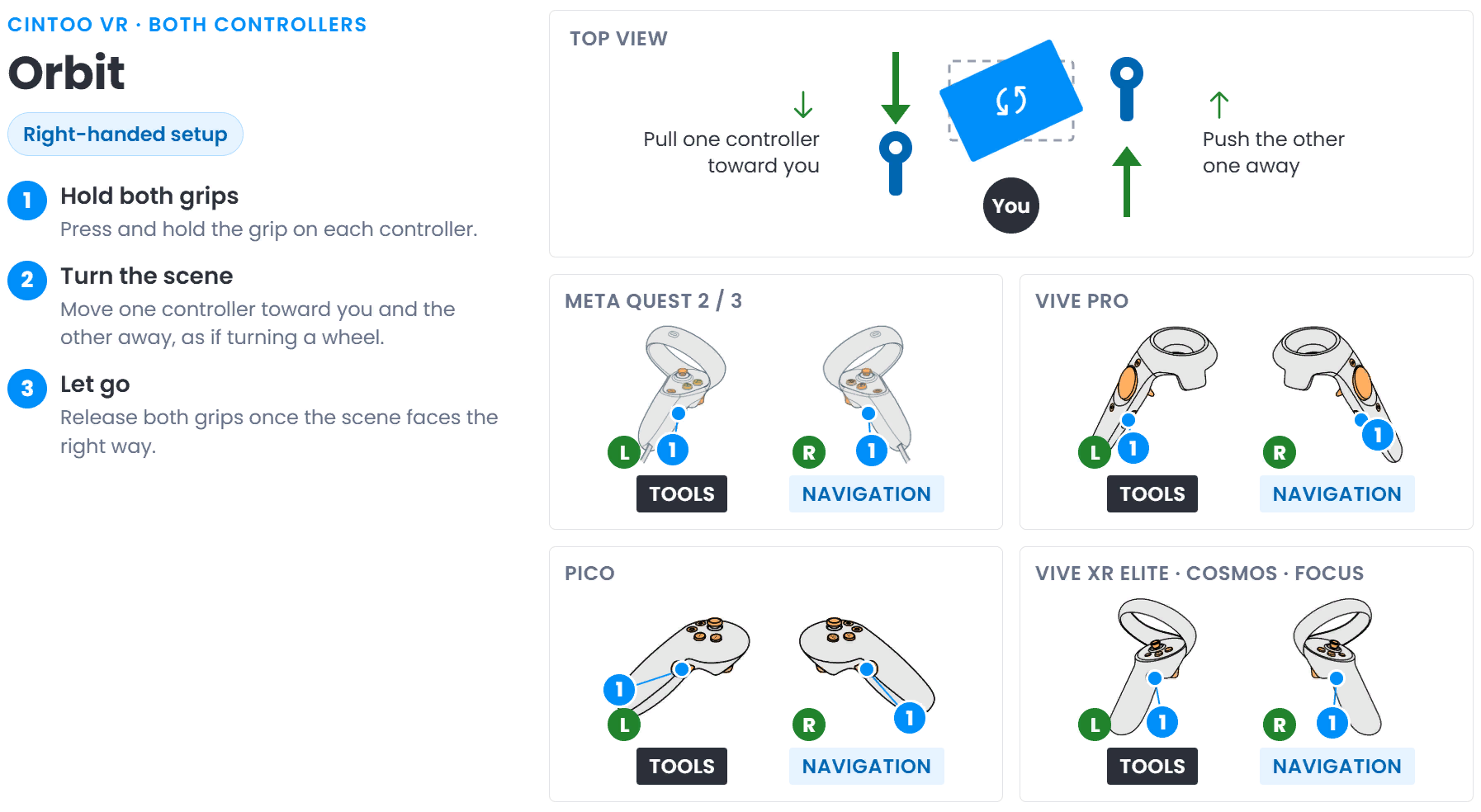

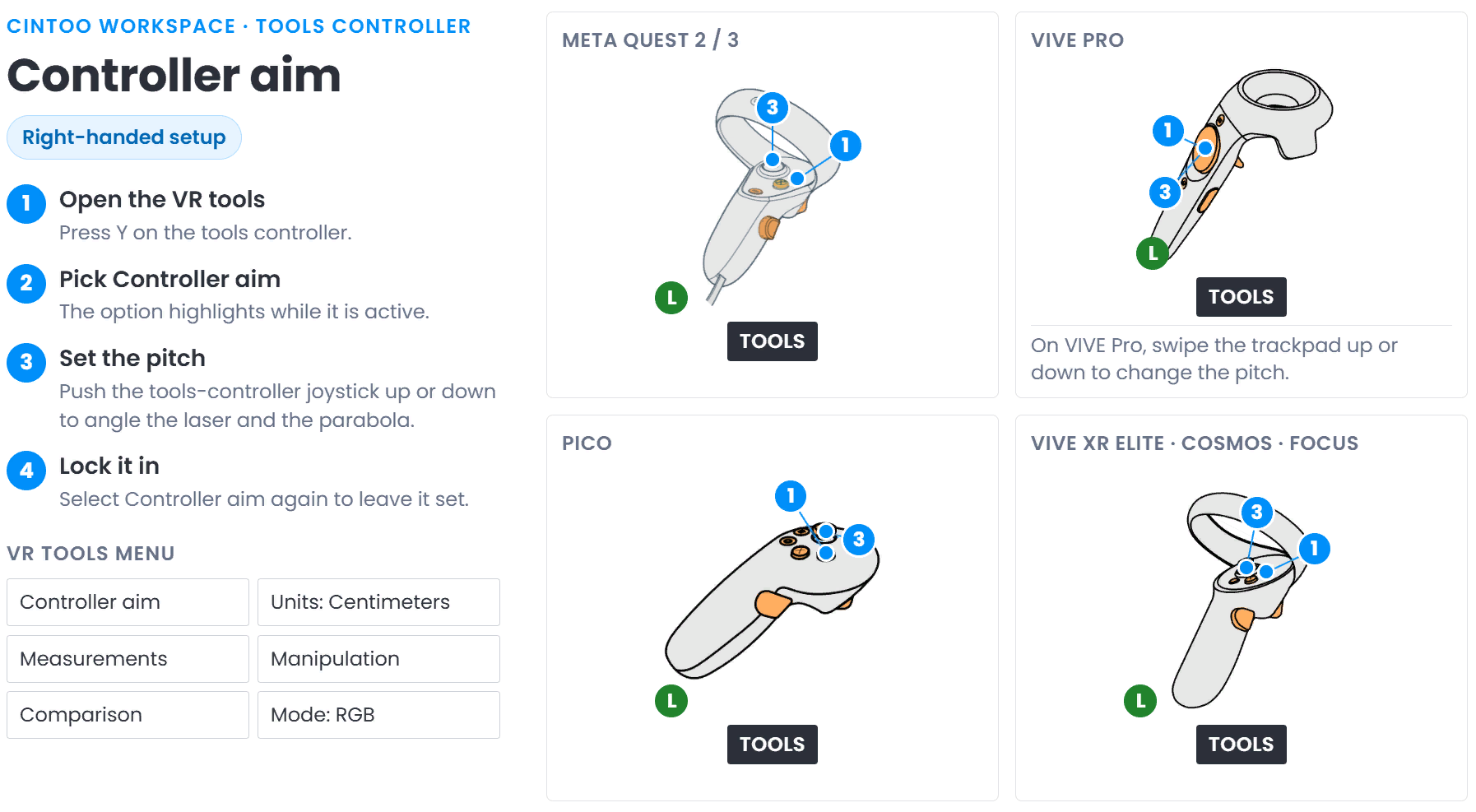

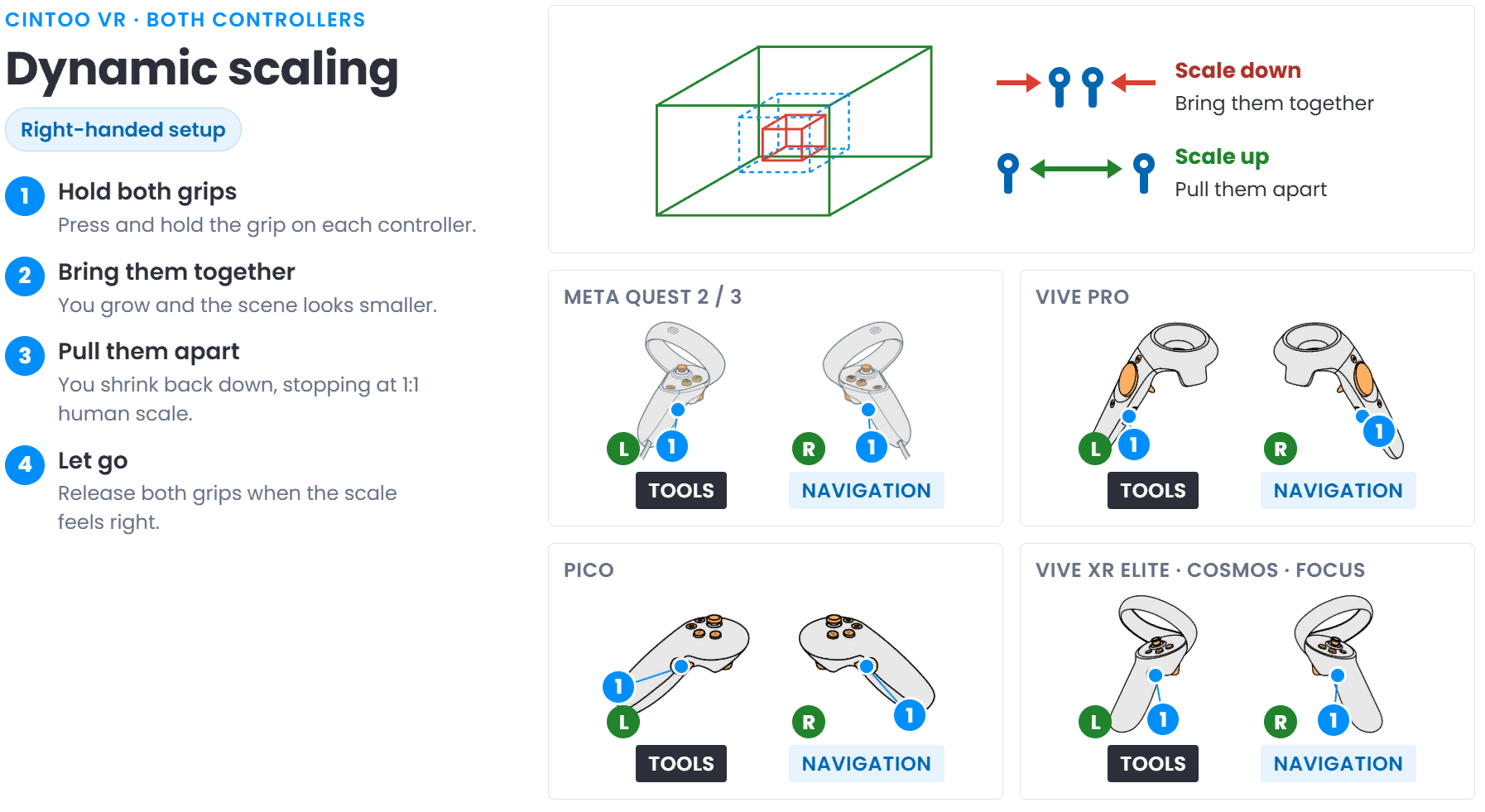

   • Advanced controls

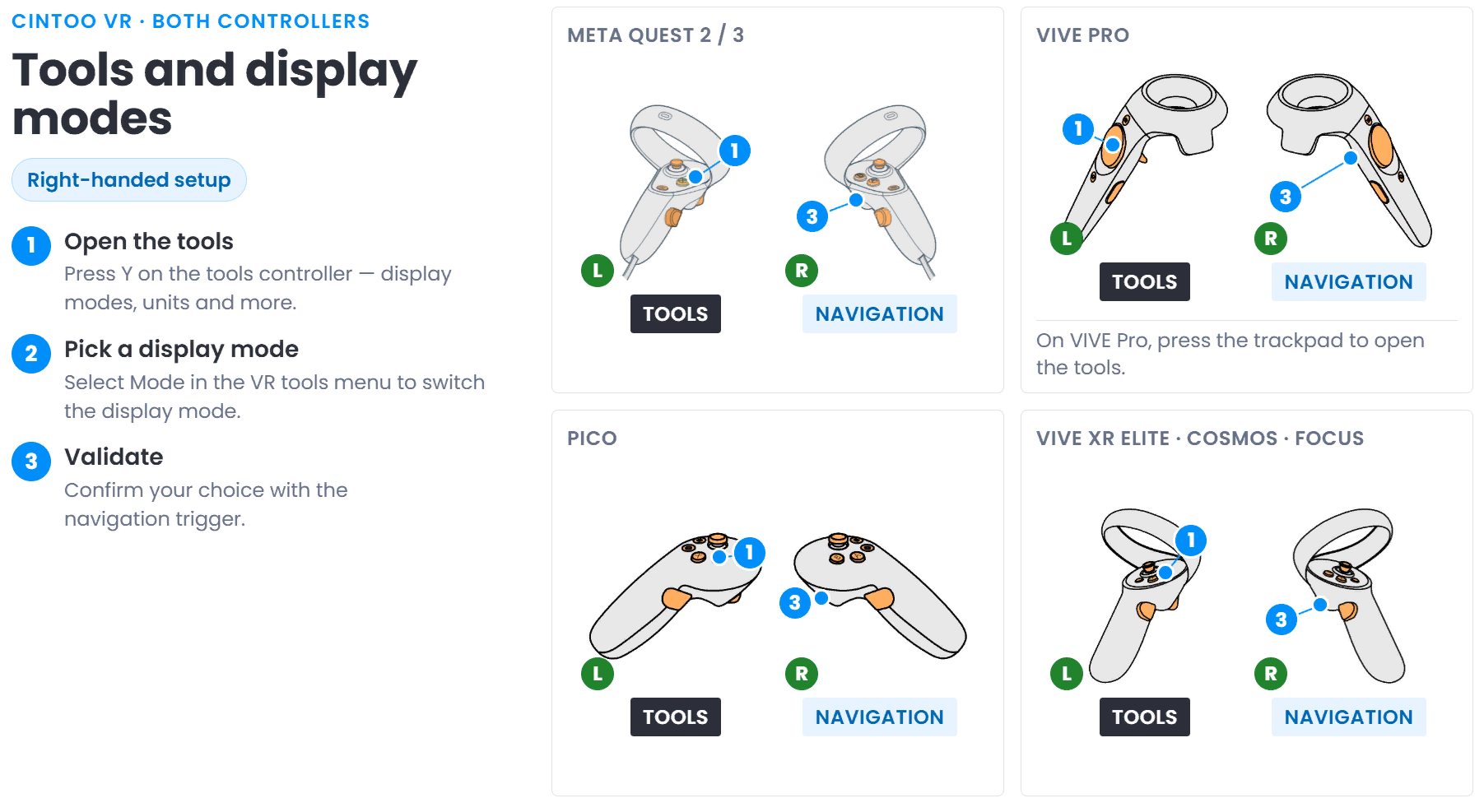

   • Activate tools and cycle display modes

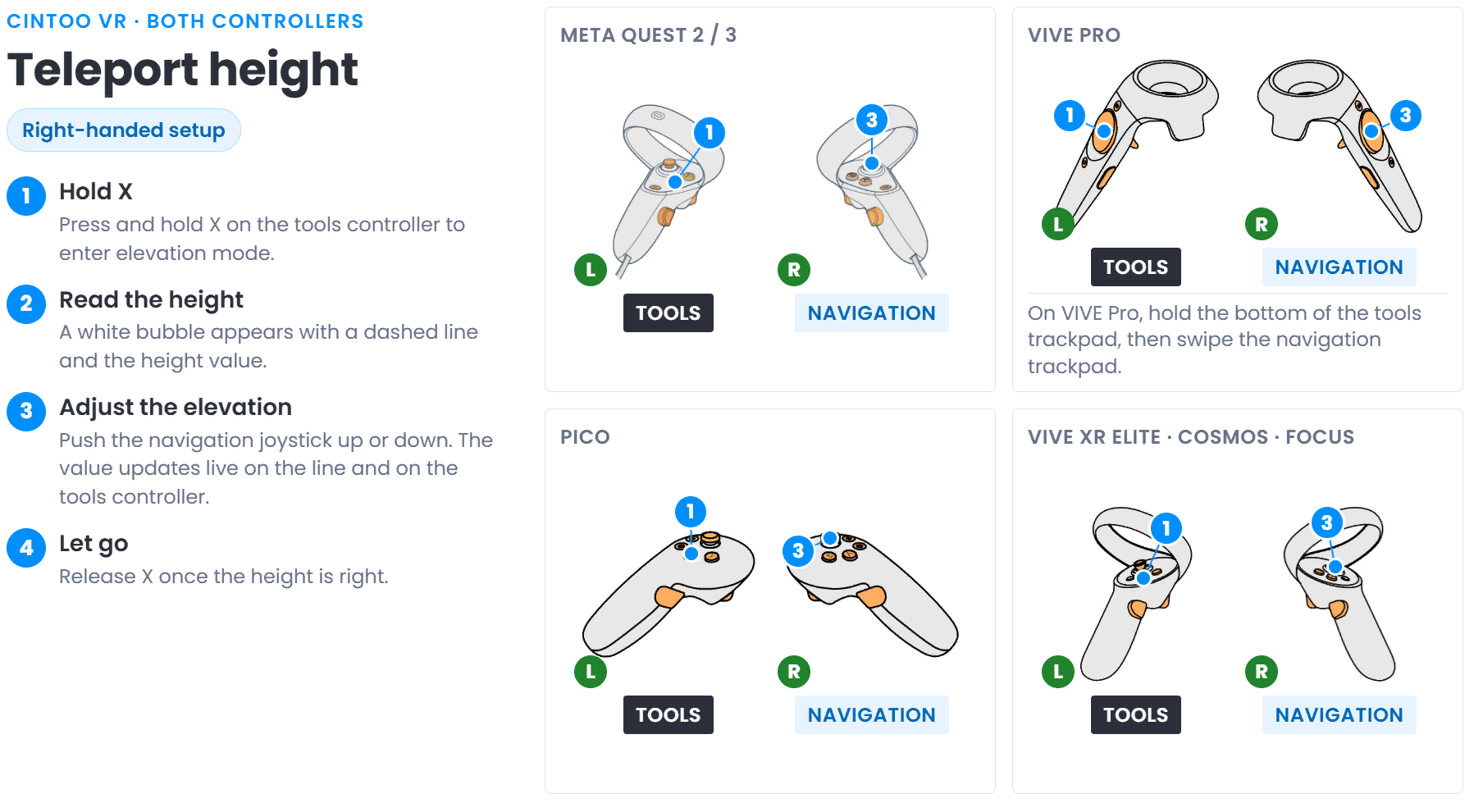

   • Teleport helpers

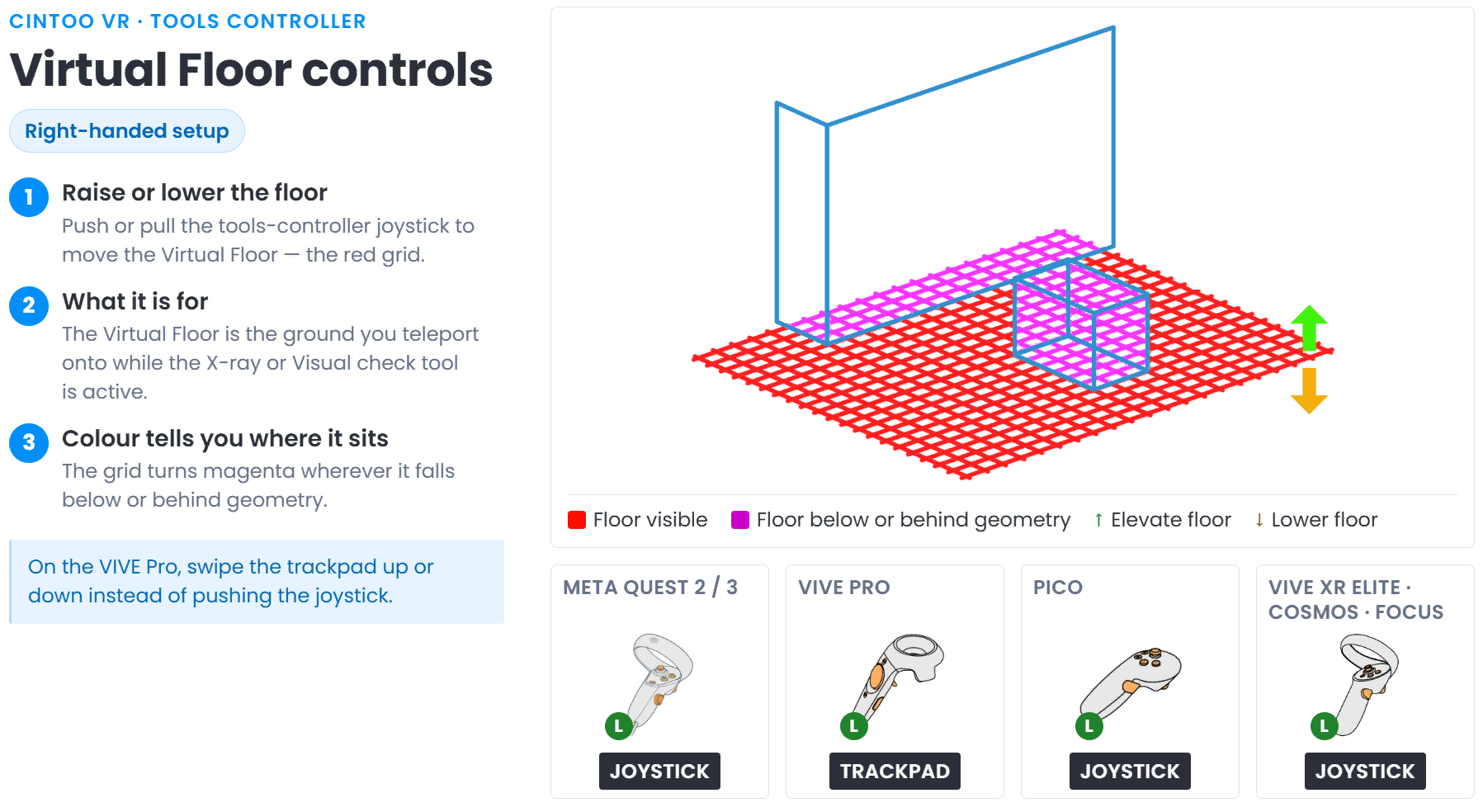

   • Virtual floor controls

7. The button Sign in with Cintoo allows you to connect to your Cintoo Account.

   • Click Sign in with Cintoo. A page will open in the browser to sign in to your Cintoo account. Enter your Cintoo login credentials to sign in.  
   • In the Authorize application dialogue, click Allow. If authorization is not allowed after one minute, a Login failed message will display in the app. Hover your mouse cursor over the Login failed message, and click Retry Log in.
8. To quit Cintoo VR Experience press the Quit application button at the top of the screen.




   • Once successfully connected, the Projects panel will display your list of projects in the app.
9. To quit Cintoo VR Experience press the Quit application button at the top of the screen.
