Upload a Generic E57/LAS/LAZ

Modified on Mon, 31 Mar at 3:12 PM

TABLE OF CONTENTS



The data expected by Cintoo Connect for this upload option is the following:

  1. Unstructured point cloud in E57, LAS, or LAZ format
  2. The trajectory /scanning path in CSV format (see Scanning Path Requirements)

Uploading Generic E57/LAS/LAZ Using Cintoo Connect

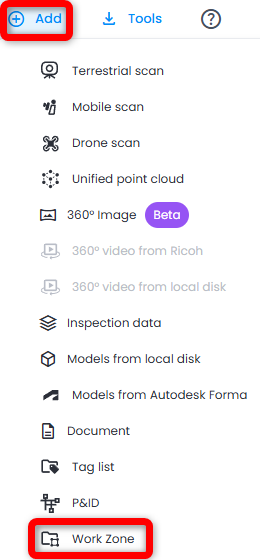

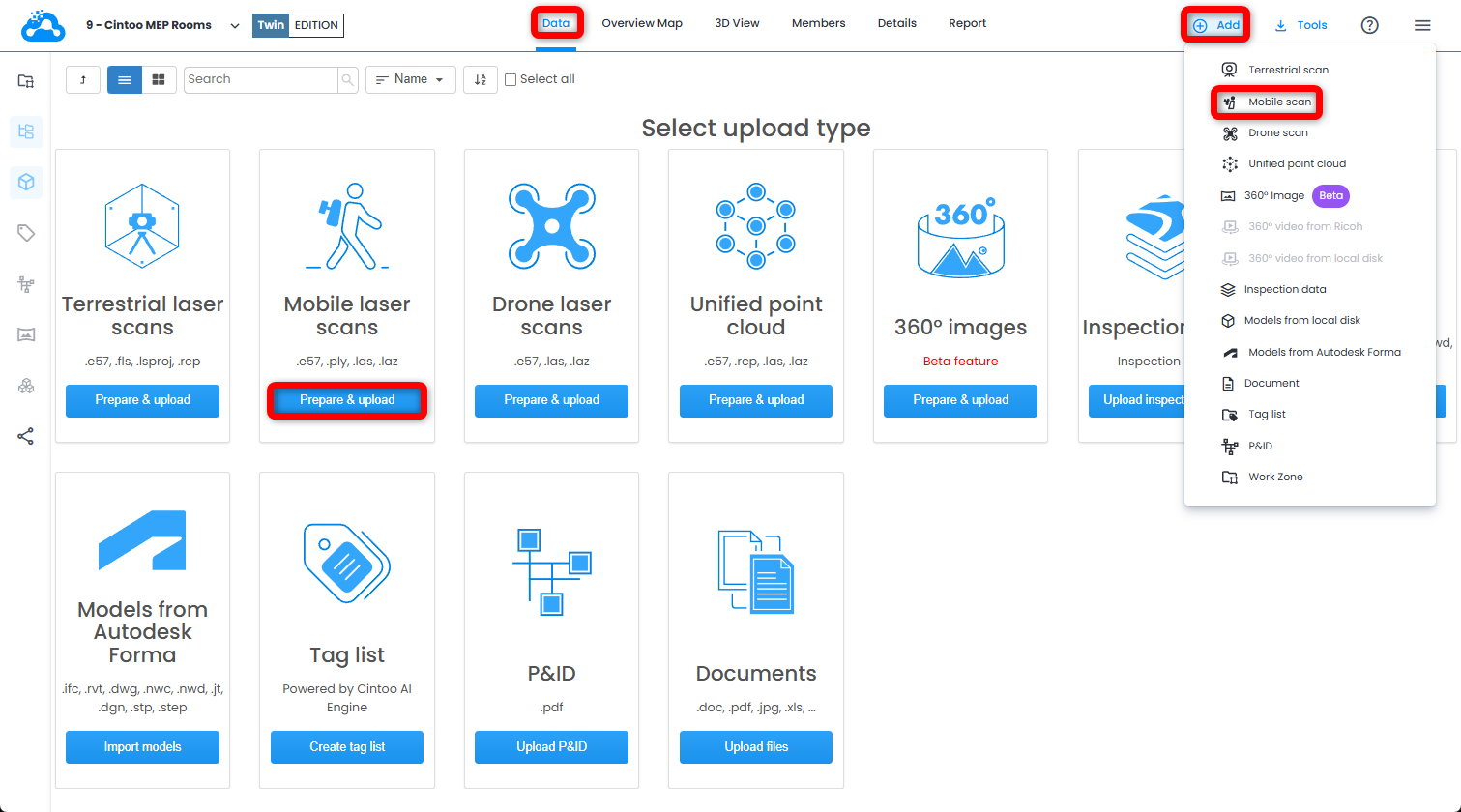

1. Open Data tab and click Prepare & upload on the Mobile laser scans tile, or click Mobile scan from the drop-down Add menu on the top right. Cintoo Connect will launch.


2. From the Mobile Laser Scans tab in Cintoo Connect, select Generic E57/LAS/LAZ as Device/Format.


3. Select the E57, LAS, or LAZ file as Point Cloud.


4. Select the CSV file as Scanning Path.

See Scanning Path Requirements for more information


5. Modify the position sampling value as needed.

  • For example, 1 of 1 position will create 1 Virtual Vantage Point (VVP) in Cintoo for every position included in the scanning path CSV. 1 of 4 positions will create 1 VVP at every 4th position included in the scanning path CSV.
  • The number of VVPs and average distance between each one will be indicated in Cintoo Connect and will be added to the scan count.


6. Enable/disable Blur faces.

  • It is checked by default, thus enabling the automatic blurring of people (i.e. faces) captured in any panoramic images included in the scans being uploaded to Cintoo.
  • Uncheck this option to prevent the automatic blurring any people in the panoramic images.
  • Blurring cannot be undone in Cintoo after the scans have been uploaded.
  • Any files uploaded without the Blur faces option enabled must be deleted from the Cintoo project and re-uploaded with the option checked in order to apply automatic blurring.


7. Modify the Data to process in parallel value as needed and according to available PC cores.

With a multi-core PC it's possible to process more than 2 scans (default setting) in parallel.

On average, at least 400 MB of RAM per 10 million pixels is needed to process. For example:

  • 8 GB of RAM will allow to process 5 scans of 40 million pixels each in parallel.
  • 64 GB of RAM will be needed to process 5 scans of 160 million pixels each in parallel.


8. Click Import.

  • New 3D scans will appear one by one in Cintoo project
  • Check Messages tab from time to time to confirm the process is running smoothly.


Scanning Path Requirements

1. If the equipment has no camera (no panoramic pictures are captured).

Create a CSV file that contains the X, Y and Z location for each new 3D scan position to be created.

  • Use comma (,) as column separator.
  • Name the columns as filename, x, y, z, qw, qx, qy, qz
  • x, y and z values must be in meters, in the same coordinate system as the scans.
  • When processing point cloud data, Cintoo Connect will create a 3D scan position at each one of these XYZ location, together with a panoramic image made from the point cloud (with or without color if the point cloud is colorized or not).

2. If the equipment has captured panoramic images:

Associated 360° images must be stored in a single folder together with a CSV file containing the information about the location and orientation of each panorama. The expected formats are the following:

All the 360° images will need to be spherical images in JPEG or PNG. Example spherical image:

The same folder needs to include a CSV file that contains 360° image name (with extension), location and orientation, for each 360° image.

The CSV file will need to be as follows:

  • Use comma (,) as column separator
  • The column for the file name must be named filename
  • Filenames should have their extension (.jpg or .png)
  • For the position, name the columns as x, y and z
  • x, y and z values must be in meters, in the same coordinate system as your scans.
  • The orientation needs to be given as a quaternion or as a simple heading

Note: since both quaternion notation and heading are supported as orientation, it's not possible to have heading and quaternion in the same CSV. It is either one or the other, otherwise Cintoo Connect will reject it.


Using quaternions for orientation

  • Name the columns as qw, qx, qy, qz
  • First column should look like (the order doesn't matter): filename, x, y, z, qw, qx, qy, qz
  • Set qw = 1 and qx = qy = qz = 0 for no rotation with quaternions.


Using a heading value for orientation


Create a column named heading in the CSV file.

The heading parameter represents the angle in degrees, a rotation around Z axis. From the top view, a positive angle represents a rotation in the clockwise direction (towards east).


Note: when using heading there will be no rotation applied around X or Y axes. We assume that the 360 images are well aligned vertically (the plane crossing the "equator" line must be parallel to the XY plane), otherwise the image will look as it is not straight (example: a straight building would look like it has some slope).


The angle takes as reference the middle of the image and the north direction:

  • Heading set to 0 degrees means that the user will see the middle of the image when looking towards north (+Y).
  • Heading set to 90 degrees means that the user will see the middle of the image when looking towards east (+X).
  • Heading set to 180 degrees means that the user will see the middle of the image when looking towards  south (-Y).
  • Heading set to 270 degrees means that the user will see the middle of the image when looking towards west (+X).


Note: Navigation Map at the bottom right corner can help to find out which direction the user is facing currently.
